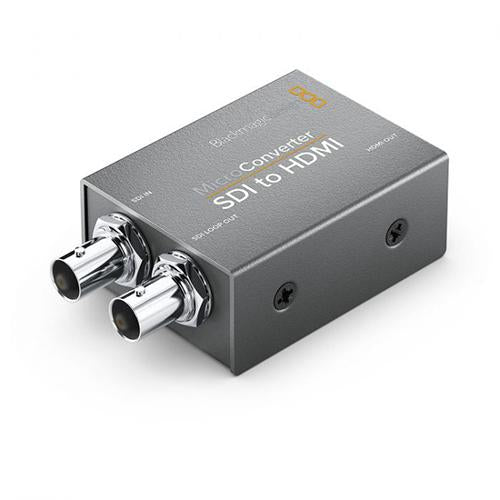

Blackmagic Design Micro Converter SDI to HDMI with Power Supply

Blackmagic Design Micro Converter SDI to HDMI with Power Supply

R 1,195.00

Tax included.

In Stock

Product Highlights

SD/HD/3G-SDI Input
HDMI and SDI Loop Outputs
Supports SD and HD Signals
Automatic Input Signal Detection
Software Control

GET IT WITH MOBICRED

Name: Blackmagic Design Micro Converter SDI to HDMI with Power Supply
Brand: Blackmagic
SKU: BLA-CONVCMIC/SH/WPSU
Price: 1195.0 ZAR
Availability: InStock

Want it now? Buy it with Mobicred! A simple, safe credit facility that allows you to shop online and pay it off in monthly instalments.

Apply Now

How does it work?

Apply once-off online
Accept T&C’s and get your credit limit
You’re ready to shop till you drop online
Pay one single monthly instalment

What do I need to apply?

You must be 18 and older.
You must have a valid SA ID or Drivers Licence.
You must be employed.
Provide your latest 3 months’ payslips or bank statements at time of application.
Earn a minimum of R5500 a month.

How do I apply?

Complete the online application form
Wait for your application to be processed
You can now shop till you drop.

Stock is going in and out all the time, so to be 100% sure that we have an item available, please phone (031) 261-6961 or email sales@dtfilmservices.com.

Otherwise you can wait for us to contact you after you have placed your order

Should you require anything else that is not on our Website, please email or phone on sales@dtfilmservices.com, +27 31 261-6961 as this website is mainly for catalogue purposes and an indication of what we sell.

OVERVIEW

Overview

Convert from SDI to HDMI so you can output video from professional SDI video equipment to consumer HDMI televisions, projectors and more! The multi rate 3G-SDI automatically switches between all SD and HD formats up to 1080p60. You also get 3G-SDI loop through, support for Level A and Level B equipment, and power over USB!

SPECIFICATIONS

Specifications

Connections
SDI Video Input	1 x SD, HD or 3G-SDI
SDI Video Output	1 x SDI loop out
HDMI Output	HDMI Type A out
Multi Rate Support	Auto detection of SD or HD
Updates, Configurations and Power	Micro USB

Standards
SDI Format Support	525i29.97 NTSC, 625i25 PAL
HD Format Support	720p50, 720p59.94, 720p60 1080p23.98, 1080p24、1080p25、1080p29.97、1080p30、1080p50、1080p59.94、1080p 60 1080PsF25, 1080PsF29.97, 1080PsF30 1080i50, 1080i59.94, 1080i60

SDI Compliance	SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 425M
SDI Video Rates	SDI video connections are switchable between standard definition, high definition level A and level B 3G-SDI
SDI Color Precision	4:2:2
SDI Color Space	YUV and RGB
SDI Auto Switching	Automatically detects SD, HD and 3G-SDI
HDMI Format Support	525i29.97 NTSC, 625i25 PAL 720p50, 59.94, 60 1080p24, 25, 29.97, 30, 50, 59.94, 60 1080i50, 59.94, 60
HDMI Color Precision	4:2:2
HDMI Color Space	YUV

Software

Software	Mac OS X™ and Windows™ software upgrade via micro USB
Internal Software Upgrade	Via micro USB
Operating Systems	Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan or later. Windows 8.1 or Windows 10.
Settings Control	Via software utility

Power Requirements
Power Supply	+5V universal power supply included with international socket adapters for all countries.
Power Consumption	1.60 Watts
Operational Voltage Range	4.4V to 5.25V DC

Environmental Specifications
Operating temperature	0° to 40° C (32° to 104° F)
Storage temperature	-20° to 60° C (-4° to 140° F)
Relative Humidity	0% to 90% non-condensing
-	-

IN THE BOX

In the Box

Blackmagic Design Micro Converter SDI to HDMI with Power Supply
Power Supply with International Socket Adapters
