Overview

Professional 3-axis stabilisation

The Ronin S provides smooth and progressive stabilisation on 3 axes: pan, tilt, and roll. The stabilisation is done by strong motors and electronic speed controllers that actively compensates for any high frequency movement, giving you smooth and professional looking video.



Obstruction free design

The DJI Ronin-S's innovative design lifts the camera above the Roll Axis, making the camera's rear built-in display obstruction free and always in your line of sight. This ergonomic design also frees the Ronin S from unwanted shake as you shift from underslung to an upright position in one smooth take.



Versatile mounting

The Ronin-S can be easily mount to an RC buggy for low angle shots or even act as a stabilized remote head when mounted to a jib. Users can also attach the DJI Ronin S gimbal to a dual-handle bar without compromising control of the gimbal, focus or the camera shutter.



Focus Command Unit

The dedicated Focus wheel can be mounted to the accessory dock, enabling creators to pull focus when operating with the standard handle.



SmoothTrack Control

The SmoothTrack system translates your movements into smooth camera angle changes. Smoothtrack works automatically and does not need input from another user. Smoothtrack intuitively faces the camera in the direction you want, all while completely stabilized. Settings from speed to deadband to acceleration are fully customizable.



Hot-swappable battery

Users can enjoy uninterruptible use with the Ronin-S. This is thanks to DJI’s intelligent battery technology that allows batteries to be hot-swapped during operation for extended shoots.



Stay Focused

Focus better on your subject with the easy-to-control Focus Wheel. When a compatible camera system connects to the Ronin-S, you can pull focus via the included cable. An optional external motor can also be added, bringing broader compatibility to all lens types while enhancing precision control.

Automated Creative Features

The most dramatic scenes unfold with imaginative, carefully planned shots. The Ronin-S includes a suite of automated features within the DJI Ronin app, letting you produce even more creative professional footage to unlock your true filmmaking potential.

Ecosystem

We understand that sometimes you need more than just a gimbal for your project. The Ronin-S offers multiple accessory mounts, providing full support for add-ons such as a microphone, LED lights, and even an external monitor. Compatibility with DJI control devices offer a wide range of control, such as Force Pro for intuitive operation and Master Wheels for precise gimbal movements. The Ronin-S also features an S-Bus port for compatibility with third-party remote controllers.

Specifications

Gimbal
Number of Axes	3-Axis (Pitch, Roll, Yaw)
Rotation Range	Yaw (Pan): 360° Pitch (Tilt): 280° (-95 to 185°) Roll: 360°
Follow Speed	Pan: 360°/s Tilt: 360°/s Roll: 360°/s
Load Capacity	8 lb / 3.6 kg
Connectivity
Ports	1 x USB Type-C
Wireless Frequency	Remote: 2.4 GHz (2.4 - 2.48 GHz)
Wireless Protocols	Bluetooth 4.0

Battery
Battery Type	1 x Built-In
Capacity	2400 mAh, 34.56 Wh
Battery Runtime	12 Hours
Battery Chemistry	Lithium-Ion
Power
Operating Current	0.16 A

Environmental
Operating Temperature	-20 to 45°C
General
Mounting	1 x 1/4"-20, Female  1 x 3/8"-16, Female
Dimensions	59.0 x 29.3 x 25.6 cm
Weight	1.86 kg
-	-

In the Box

• Ronin-S
• BG37 Grip with Built-In Battery
• Camera Mounting Plate
• 3 x 1/4"-20 Camera Screw
• USB Type-C Cable
• Lens Support
• Camera Riser
• Extended Grip/Tripod (Plastic)
• Touch Fastener Strap for Gimbal
• Storage Case

Overview

Professional 3-axis stabilisation

The Ronin S provides smooth and progressive stabilisation on 3 axes: pan, tilt, and roll. The stabilisation is done by strong motors and electronic speed controllers that actively compensates for any high frequency movement, giving you smooth and professional looking video.



Obstruction free design

The DJI Ronin-S's innovative design lifts the camera above the Roll Axis, making the camera's rear built-in display obstruction free and always in your line of sight. This ergonomic design also frees the Ronin S from unwanted shake as you shift from underslung to an upright position in one smooth take.



Versatile mounting

The Ronin-S can be easily mount to an RC buggy for low angle shots or even act as a stabilized remote head when mounted to a jib. Users can also attach the DJI Ronin S gimbal to a dual-handle bar without compromising control of the gimbal, focus or the camera shutter.



Focus Command Unit

The dedicated Focus wheel can be mounted to the accessory dock, enabling creators to pull focus when operating with the standard handle.



SmoothTrack Control

The SmoothTrack system translates your movements into smooth camera angle changes. Smoothtrack works automatically and does not need input from another user. Smoothtrack intuitively faces the camera in the direction you want, all while completely stabilized. Settings from speed to deadband to acceleration are fully customizable.



Hot-swappable battery

Users can enjoy uninterruptible use with the Ronin-S. This is thanks to DJI’s intelligent battery technology that allows batteries to be hot-swapped during operation for extended shoots.



Stay Focused

Focus better on your subject with the easy-to-control Focus Wheel. When a compatible camera system connects to the Ronin-S, you can pull focus via the included cable. An optional external motor can also be added, bringing broader compatibility to all lens types while enhancing precision control.

Automated Creative Features

The most dramatic scenes unfold with imaginative, carefully planned shots. The Ronin-S includes a suite of automated features within the DJI Ronin app, letting you produce even more creative professional footage to unlock your true filmmaking potential.

Ecosystem

We understand that sometimes you need more than just a gimbal for your project. The Ronin-S offers multiple accessory mounts, providing full support for add-ons such as a microphone, LED lights, and even an external monitor. Compatibility with DJI control devices offer a wide range of control, such as Force Pro for intuitive operation and Master Wheels for precise gimbal movements. The Ronin-S also features an S-Bus port for compatibility with third-party remote controllers.

Specifications

Peripheral
Camera Tray Dimensions	Maximum depth from the center of gravity on the camera base plate: 98 mm Maximum height measured from top of the camera base plate: 150 mm Maximum width: 205 mm
Accessory Port	Mechanical: 1/4”-20, 3/8”-16 Mounting Hole, M4 Mounting Hole Electrical: 12V/2A Power Accessory Port, Camera Control Port, 8-pin Port
Input Power	Model: RB1-2400mAh-14.4V Type: 18650 LiPo Capacity: 2400 mAh Energy: 34.56 Wh
Connections	Bluetooth 4.0 USB-C
DJI Assistant 2 Requirements	Windows 7 or above Mac OS X 10.11 or above
Ronin App Requirements	iOS 9.0 or above Android 4.4 or above
Working Performance
Load Weight (Reference Value)	3.6 kg (Handheld)

Angular Vibration Range	±0.02°
Maximum Controlled Rotation Speed	Pan axis: 360°/s Tilt axis: 360°/s Roll axis: 360°/s
Mechanical Endpoint Range	Pan axis: 360° continuous rotation Tilt axis: +185° to -95° Roll axis: 360° continuous rotation
Controlled Rotation Range	Pan axis: 360° continuous rotation Tilt axis: +135° to -90° (Upright Mode, +90° to -135° (Underslung and Flashlight Mode) Roll axis: ±30°, 360° continuous rotation (Roll 360 mode)
Mechanical & Electrical Characteristics
Working Current	Static current: ≈0.16 A
Bluetooth Operating Frequency	2.4 to 2.48 GHz
Bluetooth Transmitter Power	0 dBm
Operating Temperature	-4° to 113° F (-20℃ to 45℃)

Weight	Approx. 1.5 kg(gimbal only), Approx. 1.8 kg (gimbal and grip included)
Dimensions	Approx. 202×185×486 mm



In the Box

• Gimbal
• BG37 Grip (Built-in Battery)
• Camera Mounting Plate
• Focus Wheel
• RSS IR Control Cable (Type-C)
• Lens Support
• Camera Riser
• Extended Grip/Tripod
• Multi-Camera Control Cable (Type-B)
• USB-C Cable
• 24W USB Power Adapter (Varies by Region)
• Accessories Box
• Allen Wrench x2
• Hook-and-Loop Strap for cable
• Hook-and-Loop Strap for Gimbal
• Storage Case



Overview

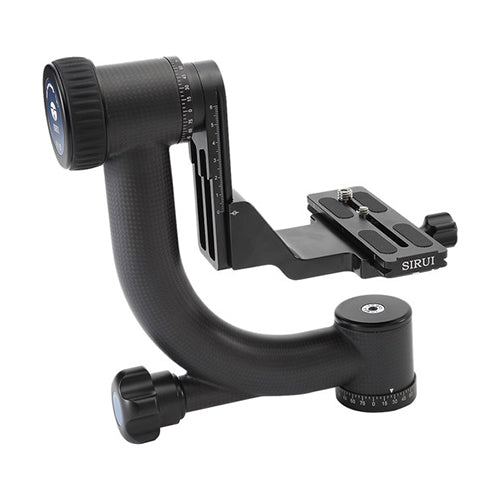

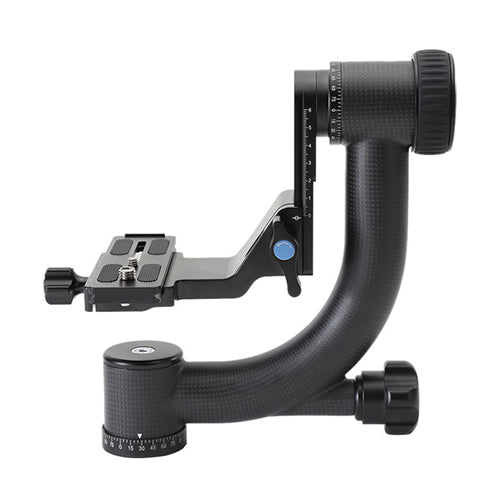

The Sirui PH-20 Gimbal Head is a great solution to the problem of shooting moving subjects with a long telephoto lens. Ball heads and 3-way heads can be cumbersome in fast-moving situations, but the gimbal head makes your camera and heavy lens seemingly weightless, and you can smoothly and precisely track fast-moving subjects.

Cross-patterned, multi-layer carbon fiber in the arm and forged aircraft aluminum alloy in the L-bracket make the PH-20 very strong--it can hold up to 44 lb, but it weighs only 2.4 lb. Carbon fiber also reduces vibrations and provides better tolerance for temperature changes.

With the camera and lens perfectly balanced on the gimbal head, there’s no need to lock any controls. You can quickly and easily move your camera in any direction with a very light amount of force. In fact, a correctly aligned system can be controlled with one finger.

Exceptionally strong carbon fiber and aluminum alloy gimbal head

Supports up to 40 lb, but only weighs 2.4 lb

Reduced vibrations and better tolerance for temperature changes due to carbon fiber construction

Arca-compatible quick release system, calibrated quick release platform, and included quick release plate

Horizontal 360° range, and tilt of +150° to -60°

Ideal for using long telephoto lenses to photography moving subjects

Specifications

Load Capacity	44 lb (20 kg)
Quick Release	Yes
Spirit Level	Not specified by manufacturer
Tension Control	Not specified by manufacturer
Separate Panning Lock	Yes
Head to Tripod Mounting Thread	3/8"-16 Female
Camera Mount Thread Size	1/4"-20
Dimensions	9.1 x 4.7 x 9.1" (23 x 12 x 23 cm)
Weight	2.4 lb (1.09 kg)

In the Box

Sirui PH-20 Gimbal Head

• Quick Release Plate
• Quick Release Platform
• Tools
• Custom Fitted Case

Overview

The SIRUI VSK-5 is a compact kit that lets you build the gear you need, when you need it! The kit lets you construct a Cage, Rig, Lowboy, Roller or Slider in minutes! You'll never have to worry about being in the field without the right tools to do the job!

You would need to buy 5 separate pieces of equipment - much heavier and costlier gear - to do what the SIRUI VSK-5 kit can do! It comes in a portable backpack that neatly stores all the components until you need them.

All major hardware is forged aircraft grade aluminum alloy - precision crafted for maximum strength and long life. All rods are strong, lightweight 8 layer 100% Carbon Fiber and can be setup or disassembled quickly and easily.

Each configuration can be done in minutes, without the need for special tools! Start working with the VSK-5 as a Shoulder Rig, then, quickly change to a Lowboy for that low angle shot! Need to track a subject or smoothly move in? Attach your gear onto the Roller or Slider instantly!

The SIRUI VSK-5 Video Survival Kit is the perfect tool for shooting videos on the go! You??l never need to decide if you should bring all of your gear to an assignment. With the VSK-5, their always with you!

Specifications

Load Capacity	Cage: 8.8 lb (4 kg) Lowboy: 8.8 lb (4 kg) Roller: 26.5 lb (12 kg) Slider: 17.6 lb (8 kg) Rig: 8.8 lb (4 kg)
Materials	Aluminum alloy
15mm Rod Length	Slider Rods: 15.75" (400 mm) Rig Rods: 7.87" (200 mm)
Dimensions (LxWxH)	Cage: 12.8 x 8 x 11.6" (326 x 203 x 295 mm) Lowboy: 12.8 x 8.2 x 14.4" (326 x 209 x 366 mm) Roller: 10.3 x 6.5 x 2.3" (262 x 165 x 58 mm) Slider: 34 x 7.8 x 4.4" (863 x 198 x 111 mm) Rig: 33.4 x 12.8 x 12.4" (849 x 326 x 315 mm)

In the Box

Sirui VSK-5 Video Survival Kit

• Side Handles with Crossbar
• Top Handle
• Table Dolly Roller with 1/4" and 3/8" Screws
• 2 x Slider End Block
• 4 x 15mm Slider Rod
• 6 x Rod Connecting Screw
• Shoulder Pad
• 8 x 15mm Rig Rod
• C Base Plate
• 8 x Rig Rod End Plug
• 2 x Attaching Screw
• Z Bar
• Top Bar
• Bag for Rods
• Backpack

Overview

The Zhiyun-Tech Crane 2 is a 3-axis handheld motorised gimbal designed to stabilise video and stills on DSLR, mirrorless cameras and camcorders. The Zhiyun-Tech Crane 2 free's users from lugging heavy video tripods and shooting from stationary positions, the Zhiyun Crane 2 is compact, smart and intuitive enabling you to shoot creative video with less restrictions.

The Crane 2, not to be confused with the previous generation Crane V2, takes the everything that was great from the original Zhiyun Tech Crane and made it better. Now featuring a max payload of 3.2kg, the Crane 2 is able to support large professional DSLR's, camcorders, and mirrorless cameras; even kits with long telephoto lenses. Another great feature is the ability to manually focus and control, aperture, ISO and exposure compensation settings straight from the Crane 2 handle itself (Exposure control available on popular Canon, Sony, Nikon, and Panasonic cameras. Manual focus only available on popular Canon cameras).

Other great features include: Four shooting modes, 360° rotation along pan & roll axes, -135° and +185 tilt, 4-way stepless joystick control, OLED display, control dial, camera exposure control, manual follow focus, and up to 18 hours of battery life.

This kit includes a Mechanical Servo Follow Focus

• 3.2kg Payload
• 360° rotation along pan & roll axes with 4-way stepless joystick control
• Four shooting modes
• Quick and tool-free setup
• 1/4"-20 thread for mounting on various supports





In the Box

• Zhiyun-Tech Crane 2
• Mini tripod
• 18650 Battery charging hub
• 3 x 18650 lithium-ion batteries
• Micro to mini USB cable
• Sony camera charging / charging cable
• Panasonic camera cable
• Canon camera cable
• Micro USB cable
• User Manual
• Shoulder strap
• Protective carry case
• Servo Follow Focus (Mechanical)

Overview

The Zhiyun-Tech Crane 3 Lab Handheld Stabiliser is known as the secret weapon that represents cutting-edge innovation, being the one and only gimbal on the market to feature integrated wireless FHD image transmission, focus and zoom control, touch control and all-inclusive control panel. The Zhiyun-Tech Crane 3 Lab can truly be enjoyed by professional filmmakers with all its intuitive features in store, to deliver smooth, stabilised video footage.

The Crane 3 Lab Gimbal features a crafted latch design with a latch provided on each axis – making it extremely easy to balance, and also provides a super-fast setup. The Crane 3 Lab from Zhiyun-Tech is designed with great ergonomics – enabling you to hold the handle of the gimbal in a handy underslung position for a free flowing momentum; compatible with almost all the best-selling DSLRs and video lenses on the market – holding an impressive payload of 4.5 kg; an intuitive OLED screen that allows you to have full access and control over your camera & stabiliser parameter settings; and a powerful 2600 mAh battery capacity that will keep you powered for up to 7.5 hours of runtime.

Merged into this sophisticated stabilising kit are aviation motors and a spanking brand-new structure, where you can appreciate 50% noise reduction and 100% increase in motor torque; 150% improvement in response speed which enables the gimbal to mobilise focus and zoom control synchronically.

Specification

Number of Axes	3-Axis (Pitch, Roll, Yaw)
Rotation Range	Yaw (Pan): 360° Pitch (Tilt): 273° (-93 to 180°) Roll: 360°
Load Capacity	4.54 kg
Connectivity
Ports	1 x USB Micro-B
Wireless Protocol	Wi-Fi (Unspecified Type)
Battery Type	3 x 18650
Battery Runtime	7.5 Hours
Battery Chemistry	Lithium-Ion
Operating Temperature	-10 to 45°C

In the Box

• Zhiyun-Tech CRANE 3 LAB Handheld Stabilizer
• TransMount Crane 3-Lab Handheld Tripod
• Quick Release Camera Plate
• 3 x 18650 Battery
• Battery Charger
• 6 x USB Control Cable
• 2 x HDMI Cable
• Cable Storage Case
• Carrying Case

Overview

The Zhiyun-Tech Crane Plus is a 3-axis handheld motorised gimbal designed to stabilise video and stills on DSLR, mirrorless cameras and camcorders. What sets the Zhiyun Crane Plus apart from other motorised gimbals is its very nifty object-tracking feature, simply mount a mobile device on-top of a mounted camera, frame the subject on the device, and the gimbal will rotate to follow your subject (or even yourself) as it moves.

The Zhiyun-Tech Crane Plus is able to support up to 2.5kg of camera gear, making it more than adequate to support a full frame DSLR camera, mirrorless camera, or compact camcorder; even with accessories such as microphones and/or video lights. The Zhiyun-Tech Crane Plus free's users from lugging heavy video tripods and shooting from stationary positions, the Zhiyun Crane Plus is compact, smart and intuitive enabling you to shoot creative video with less restrictions.

Other great features include: Four shooting modes, 360° rotation along pan, roll, and tlit axes, 4-way stepless joystick control, zoom control (for select Sony kits), and up to 18 hours of battery life.

• 360° Rotation Along All Three Axes
• Supports Large Payloads Up to 5.5 lb
• MotionMemory & POV Modes
• Intelligent Object Tracking & NightLapse
• Control Select Panasonic & Sony Cameras



Features

2.5kg Payload

The ZhiyunTech Crane Plus gimbal supports a heavy payload of up to 2.5kg of camera gear; this means that the Crane Plus can stabilise a full frame DSLR camera, mirrorless camera, or compact camcorder; even with accessories such as microphones and/or video lights.

4-way stepless joystick with motor force control

The Zhiyun-Tech Crane Plus gimbal offers 360° rotation across pan, tilt, and roll axes.

Four shooting modes

Four different shooting modes allow you to get creative with the Crane Plus gimbal. The modes allow you to: lock the pan and tilt, pan left and right only, pan and tilt the camera freely, and allow up to 45 degrees of synchronous motion.

POV mode with 45° synchronous motion

The Crane Plus adds a newly designed POV (Point of View) mode that allows for additional camera movement by providing up to 45 degrees of synchronous motion on the roll axis, What this means is that rather than Crane Plus keeping the camera level when you roll left or right, POV mode will move with you and roll your camera left or right, up to 45 degrees.

Quick and tool-free setup

Cameras are attached by securing a simple thumbscrew without any tools, and full setup can be achieved within a few minutes.

1/4" thread and mini tripod

A 1/4" threaded mounting hole on the bottom allows users to mount the Crane Plus Gimbal on monopods, tripods, and various other support equipment. A mini tripod is included.

Wireless control

The Zhiyun-Tech Crane Plus can be controlled wirelessly from an iOS/Android app (available from Zhiyun-Tech) via Bluetooth.

Up to 18 hours of battery life

The Zhiyun-Tech Crane Plus gimbal runs on two 26500 batteries, which feature a 12-18 hour runtime.

Other Features

• USB charging for Sony cameras with USB charge support
• Protective carry case included
• Includes battery charging hub to simultaneously charge all two batteries
• Remote control of select Panasonic & Sony Cameras. One Panasonic and one Sony camera control cable included

Specifications

Operation Voltage
Minimum	6.8V
Standard	8.4V
Maximum	12.6V
Operation Current
Minimum	80mA
Standard	110mA
Current	6000mA
Following Deviation in Static State
Minimum	±0.01°
Maximum	±0.03°
Following Deviation in Motion State
Minimum	±0.05°
Maximum	±0.2°
Mechanical Range of Tilt Axis	360°
Mechanical Range of Roll Axis	360°
Mechanical Range of Pan Axis	360°
Operation Temperature
Minimum	-10℃
Standard	25℃
Maximum	45℃
Battery Runtime
Minimum	12h
Maximum	18h
Charging Tim	3h
Valid Payload
Minimum	350g
Maximum	2500g
Dimensions	17.3 x 18.8 x 37.4 cm (6.8 x 7.4 x 14.7 inches)

Shipping Dimensions	35.5 x 31 x 10.3 cm (13.9 x 12.2 x 4.05 inches)
Weight	0.95 kg (2.09 lbs)
Shipping Weight	2.8 kg (6.17 lbs)
-	-

  IN THE BOX In the Box

• Zhiyun-Tech Crane Plus
• Mini tripod
• 26500 Battery charging hub
• 2 x 26500 lithium-ion batteries
• Sony camera cable
• Panasonic camera cable
• Micro USB cable
• Lens Mounting Clamp
• 2 Mounting Screws
• User Manual
• Anti-slip grip tape
• Protective carry case

Overview

Professional 3-axis stabilisation

The Ronin SC provides smooth and progressive stabilisation on 3 axes: pan, tilt, and roll. The stabilisation is done by strong motors and electronic speed controllers that actively compensates for any high frequency movement, giving you smooth and professional looking video.



2kg Payload

The Ronin SC features a maximum payload of 2kg. This enables the gimbal to support small DSLR kits, mirrorless cameras and compact camcorders



Sport Mode

The Ronin SC gimbal features a Sport mode that improves the sensitivity of each axis while continuing to maintain smooth stabilisation, making Ronin-SC more effective in fast follows, sudden motions, and even complete changes in direction.



Obstruction free design

The DJI Ronin-SC's innovative design lifts the camera above the Roll Axis, making the camera's rear built-in display obstruction free and always in your line of sight. This ergonomic design also frees the Ronin SC from unwanted shake as you shift from underslung to an upright position in one smooth take.



Timelapse

A timelapse function make the passage of time your ultimate storytelling tool, capturing vast landscapes, cityscapes, sunsets and blossoming flowers in a steady frame.



Panorama

Smooth, automated movement control allows you to create panoramas with unparalleled quality and precision.



Motionlapse

Smooth gimbal movement adds a compelling element to your timelapse.



Motion Control

Create a camera movement path to repeat the exact frame you want, whenever you need.



Unlimited 360° roll pan axis

The pan axis of the DJI Ronin SC allows for continuous movement, freeing the camera for more ambitious shots. Options like an infinite 360° roll allow filmmakers to achieve completely unique shots.



Versatile mounting

The Ronin-SC can be easily mount to an RC buggy for low angle shots or even act as a stabilized remote head when mounted to a jib. Users can also attach the DJI Ronin SC gimbal to a dual-handle bar without compromising control of the gimbal, focus or the camera shutter.



SmoothTrack Control

The SmoothTrack system translates your movements into smooth camera angle changes. Smoothtrack works automatically and does not need input from another user. Smoothtrack intuitively faces the camera in the direction you want, all while completely stabilized. Settings from speed to deadband to acceleration are fully customizable.



ActiveTrack 3.0

DJI adapted ActiveTrack 3.0 for Ronin-SC to excel in delivering a professional-quality shot. To achieve this, we have refined ActiveTrack by adding even more layers of advanced automation. As the smartphone tracks the subject, we combine its field-of-view (FOV) data with the Ronin app, creating a unique head-and-shoulder model. Using precise computer vision to detect everything in its field of view, ActiveTrack employs deep learning to sharpen its ability to analyze an object after every encounter, gaining the ability to process it faster over time. The use of this artificial intelligence in gimbal technology is a facet where DJI stands alone in the gimbal industry. When using ActiveTrack to maintain a cinematically composed shot of your subject, you are taking advantage of technology that no other professional gimbal can deliver.



Force Mobile control

The DJI Ronin-SC introduces Force Mobile, an app-based version of the Force Pro camera movement control system. By tilting and rotating your smartphone, users can control the gimbal with ultra-low latency, delivering a fluid, expressive shot with an instinctive feel.



Included easy-to-control Focus Wheel and Motor

Focus better on your subject with the included easy-to-control Focus Wheel. When a compatible camera system connects to the Ronin-SC, you can pull focus via the included cable. An optional external motor can also be added, bringing broader compatibility to all lens types while enhancing precision control.



Axis locks. Simple Setup with Safety Features

Axis locks on each arm allow for faster storage and individual axis balancing. The Quick-Release Plate includes a positioning block to memorize the perfect camera position for instant remounting. When powering off, the motors gradually power down the gimbal, ensuring reliability and quick setup wherever your shot takes you.



Automated Creative Features

The most dramatic scenes unfold with imaginative, carefully planned shots. The Ronin-SC includes a suite of automated features within the DJI Ronin app, letting you produce even more creative professional footage to unlock your true filmmaking potential.



Ecosystem

We understand that sometimes you need more than just a gimbal for your project. The Ronin-SC offers multiple accessory mounts, providing full support for add-ons such as a microphone, LED lights, and even an external monitor. Compatibility with DJI control devices offer a wide range of control, such as Force Pro for intuitive operation and Master Wheels for precise gimbal movements.



Ronin App

The Ronin app has also been improved for an even better user experience making Ronin-SC professional and easy to use. The layout has been refined to offer quicker access to preset scenarios, and we’ve also included a camera balancing guide, along with tutorials to help users master their handheld gimbal. The app also minimizes hardware tuning, setting filmmakers free to produce great footage.

Specifications

Peripheral
Accessory Connections	1/4” Mounting Hole, 3/8” Mounting Hole, Camera Control Port, Accessory Port, USB-C Port, RSA Port
Intelligent Battery	Model: RB2-2450mAh-7.2V Type: 18650 LiPo Capacity: 2450 mAh Power: 17.64 Wh Max. Battery Life: 11 h Charging Time: 2.5 h (5 V/2 A) Charging Temperature: 5° to 40°C (41° to 104°F)
Connections	Bluetooth 5.0; USB-C
Mobile Assistant Software Requirements	iOS 9 or above; Android 5.0 or above
Working Performance
Tested Payload	≤ 2.0 kg
Angular Vibration Range	±0.02°
Maximum Controlled Rotation Speed	Pan axis control: 180°/s  Tilt axis control: 180°/s Roll axis control: 180°/s

Mechanical Endpoint Range	Pan axis control: 360° continuous rotation Tilt axis control: -95° to +220° Roll axis control: -202.5° to +112.5°
Controlled Rotation Range	Pan axis control: 360° continuous rotation Tilt axis control: -90° to 145° Roll axis control: ±30°
Mechanical & Eléctrical Characteristics
Working Current	Static current: 0.2 A
Working Frequency	2.400 GHz to 2.4835 GHz
Transmission Power	8 dBm
Operating Temperature	-20° to 45°C (-4° to 113°F)
Weight	Gimbal: Approx. 830 g BG18 Grip: Approx. 258 g Tripod: Approx. 160 g
Gimbal Dimensions	Folded: 220×200×75 mm Unfolded: 370×165×150 mm



In the Box

• DJI Ronin-SC Gimbal Stabilizer
• DJI BG18 Grip for Ronin-SC Gimbal
• DJI Smartphone Holder for Ronin-SC and Ronin-S Gimbals
• DJI Camera Riser for Ronin-SC or Ronin-S Gimbal
• DJI Multicamera USB Control Cable for Ronin-SC Gimbal
• DJI USB Type-C Multicamera Control Cable for Ronin-SC Gimbal
• DJI USB Type-C To Micro-USB Multicamera Control Adapter for Ronin-SC Gimbal
• USB Type-C Charging Cable
• Quick Release Camera Mounting Plate
• Extended Grip/Tripod
• Lens Support
• 2 x Allen Wrench
• 2 x 8-Pin Port Cover
• 3 x 1/4"-20 Screw
• 4 x M4 Screw
• Storage Case
• Focus motor
• Focus wheel
• Focus motor rod mount
• Focus gear strip
• Screw
• RSS spiltter
