    YoloLiv YoloBox Pro Portable Multi-Camera Encoder / Streamer / Switcher / Monitor / Recorder

    Original price R 31,695.00 - Original price R 31,695.00
    Original price
    R 31,695.00
    R 31,695.00 - R 31,695.00
    Current price R 31,695.00

    Create a live stream production from anywhere with the ultra-portable YoloBox Pro Portable Multi-Camera Encoder/Streamer/Switcher/Monitor/Recorderfrom YoloLiv. The YoloBox Pro can simultaneously broadcast up to three video streams via Wi-Fi, RJ45 Ethernet, or via 4G LTE with a separately available SIM card and subscription.


    The YoloBox Pro features multiple updates from the original YoloBox, including HDCP compliance, both mic and line analog audio inputs, a USB input, three HDMI inputs, a Qualcomm 660 encoder/processor, a high-capacity 10,000mAh internal battery, and a larger 8" LCD touchscreen display with 400 cd/m² brightness. The YoloBox Pro allows you to connect and live switch up to 8 video sources, and then connect to a local area network via Wi-Fi, Ethernet, or LTE (LTE connection requires SIM card and data plan not included). The large 8" touchscreen display shows the streaming image, the input streams as well as the control interface, which allows you to switch between the info sources with a touch. It also features an HDMI output to display your stream locally on an optional HDMI display. It also has a line-level audio input, a mic-level audio input, and a discrete headphone audio out.

    The YoloBox Pro supports input resolutions ranging up to 1080p using the H.264 codec, and you can stream resolutions from 540p to 1080p to YouTube, Twitch, and other streaming services via custom RTMP presets. Stream to the Internet using a 4G cellular network such as Verizon, T-Mobile, and AT&T, using a separately available nano-size SIM card and a separately available data plan. You can record your stream directly in .mp4 format to an optional SD card with up to 128 GB capacity using the built-in SD card slot.

    Latest Firmware 1.06 Update

    As of the latest firmware update:
    • Support two videos from SD card: Users can now add a total of 3 sources (2 videos and 1 PDF) from the SD card, and a total of 8 video sources (3 HDMI + 1 USB-A + 1 USB-C + 2 SD Card Videos + 1 PDF)
    • Scoreboard Countdown Timer: You can easily create a timer or reset it whenever you want with just one tap. The longest time period supported is 100 minutes, satisfying various live streaming scenarios and taking your live production to a new level of flexibility.
    • Character limits for rolling captions removed: Even if you live stream a music festival with all lyrics displayed, there won't be a problem.

    Latest Firmware 1.04 Update

    As of the latest firmware update:
    • Select encoding options including CBR, VBR, CQ
    • Built-In Chroma Key is available on YoloBox Pro
    • Standard bug fixes and performance improvements
    • Customize your graphic overlays, including editing the fonts, colors, and background colors of your lower-thirds, scoreboard, and rolling captions

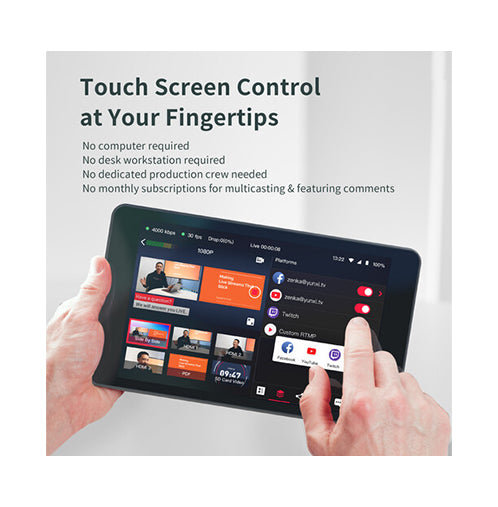

      Touchscreen Control

      The YoloBox Pro provides you with a large touchscreen interface for easy streaming and control.


      The device works as a switcher, with a variety of picture-in-picture templates as well as graphic layers. It has a built-in encoder that allows for live streaming, and it can record to optional SD cards up to 128GB.


      • You can brand your live stream by adding logos/watermarks/rolling captions
      • Customized PiP options, including Interview mode, allow you to bring a unique look and feel to your stream
      • Engage with your audience in real time via feature comment overlays
      • The customizable scoreboard feature displays a real-time-controlled scoreboard for professional looking results
      • Built-in lower-thirds templates can be edited or you can add your own


      You can connect to the internet using the integrated RJ45 (Ethernet) port, Wi-Fi, and via cell service using an optional SIM card.


      Simultaneous Streaming

      YoloBox Pro will first push your feed to the YoloLIV platform, from where it automatically forward your feed to a maximum of 3 destinations simultaneously.
      Note: Please note that at times a streaming service may change their policies, which will cause issues with integration; this is usually a temporary situation.


      Streaming Platforms

      Major steaming platforms such as Facebook live, YouTube, and twitch as well as YoloLIV are supported.
      RTMP protocols allow you to stream to custom RTMP destinations including YouTube.


      SD Card Input

      Roll in pre-recorded videos for intro, countdown, B-roll, or special segments from an SD media card.


      You can load a PDF as a local source to your YoloBox.

      Battery Life

      The internal 10,000mAh battery can power your YoloBox Pro for approximately 3 hours. The YoloBox Pro charges via a USB Type-C input, which is used for power only.

      • Touch control without a computer
      • 8" LCD display with 400 cd/m² brightness
      • Built-in simultaneoulsy streaming to up to 3 destinations
      • HDCP compliant
      • Stream via Ethernet, Wi-Fi, LTE 4G
      • Live switch up to 8 sources

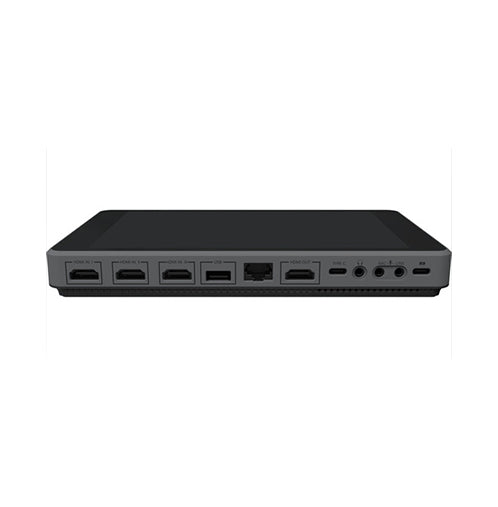

      • 3 x HDMI inputs, 1 x USB video input, 1 x SD card slot, 1 x HDMI output
      • One USB Type-C charging input
      • Mic and Line audio input, 1 x audio output
      • Ability to input PDF
      • Add logos/comments to the stream
      • Import pictures/videos from SD card
      • Records internally to SD card up to 128GB
      • Direct integration with YouTube/Facebook/RTMP(s)
      • Supports up to 1080p60 video
      IP Encoding/Decoding
      IP Video H.264:
      960 x 540 to 1920 x 1080 Encoding
      IP Audio AAC-LC: Encoding
      Transport Protocols RTMP
      Simultaneous Streams 3 Streams
      Compatible Services Facebook Live, Twitch, YouTube Live

      Wi-Fi 2.4/5 GHz

      SIM Card Slots 1 x Nano SIM
      4G LTE LTE: 1, 2, 3, 4, 5, 7, 8, 12, 13, 14, 17, 20, 25, 26, 28, 38, 39, 40, 41, 66, 71 Bands

      Video Connectors 3 x HDMI Input
      1 x HDMI Output
      Audio Connectors 1 x 1/8" / 3.5 mm TRRS Headphone/Microphone Stereo Analog Input
      1 x 1/8" / 3.5 mm TRRS Headphone/Microphone Mono Analog Input
      1 x 1/8" / 3.5 mm TRRS Headphone/Microphone Stereo Analog Output
      Other I/O 1 x RJ45 10/100 Ethernet Input/Output
      1 x USB Type-A USB 3.1 Gen 1 Input
      1 x USB Type-C USB 3.1 Gen 1 Input/Output
      Embedded Audio HDMI/USB Type-C/Wireless: 2-Channel

      Internal Recording
      Recording Media 1 x SD (Unspecified Type)
      Recording Modes 1920 x 1080p up to 60 fps

      Built-In Battery 10,000 mAh
      Power Connector 1 x USB Type-C (5 to 12 VDC at 1.5 A) Input

      Operating Temperature 14 to 104°F / -10 to 40°C
      Storage Temperature 41 to 104°F / 5 to 40°C

      Display LCD
      Dimensions 8.6 x 5.1 x 1.1" / 218 x 129 x 27 mm
      Weight 26.5 oz / 750 g
      Packaging Info
      Package Weight 3.11 lb
      Box Dimensions (LxWxH) 10.1 x 6.6 x 2.9"

      IN THE BOX
      • Encoder/Streamer/Switcher/Monitor/Recorder
      • 2 x USB Type-C Cable
      • Shoe Mount
      • SIM Card Eject Pin
