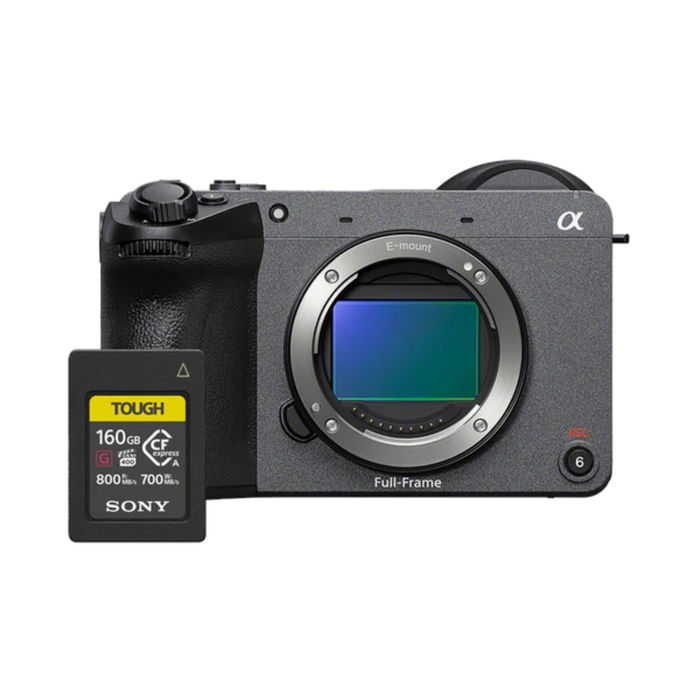

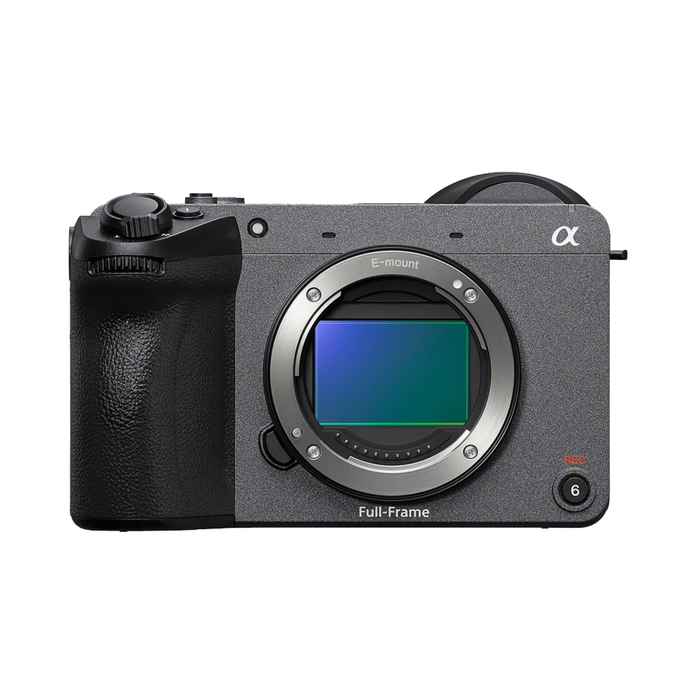

Sony FX2 Digital Cinema Camera
The Sony FX2 Digital Cinema Camera is well equipped with a 33MP back-illuminated Exmor R full-frame sensor with a BIONZ XR processor. Capable of capturing vivid DCI 4K internally with 10-bit 4:2:2 sampling, or outputs 16-bit raw video via an HDMI connection. Capture video in XAVS S, S-I, and HS recording formats in Long GOP, All-Intra, H.264, and H.265 codecs. Up to 16 user-imported LUTs or S-Cinematone mode can be applied to exactly match colour and tone to other high-end Sony cameras in the Cinema Line.
The Sony FX2 Digital Cinema Camera is well equipped with a 33MP back-illuminated Exmor R full-frame sensor with a BIONZ XR processor. Capable of capturing vivid DCI 4K internally with 10-bit 4:2:2 sampling, or outputs 16-bit raw video via an HDMI connection. Capture video in XAVS S, S-I, and HS recording formats in Long GOP, All-Intra, H.264, and H.265 codecs. Up to 16 user-imported LUTs or S-Cinematone mode can be applied to exactly match colour and tone to other high-end Sony cameras in the Cinema Line.
DESCRIPTION
33MP Exmor R BSI CMOS Sensor
The Sony FX2 Digital Cinema Camera provides vivid 4K video with natural gradations, realistic colour, and low noise in both full-frame and Super 35 modes. This is done by perfectly pairing the 33MP back-illuminated Exmor R sensor with a BIONZ XR processor. For exceptional sharpness and realism, 7K oversampling is done with full pixel readout.
Designed to tackle diverse lighting scenarios, the FX 2 features a dynamic range greater than 15 stops, an ISO expandable up to 204800, and updated dual-base ISO technology for capturing footage in S-log3 at 800 or 4000 ISO.
DCI 4K Video Recording
The FX 2 is designed to provide you with the maximum flexibility, shooting DCI 4K footage internally with 10-bit 4:2:2 sampling or outputs 16-bit raw video via an HDMI connection. Capture video in XAVS S, S-I, and HS recording formats in Long GOP, All-Intra, H.264, and H.265 codecs. Colour and tone reproduction can be tailored with precision using up to 16 user-imported LUTs or S-Cinematone mode for matching your higher-end Sony Cinema Line cameras, such as the VENICE.
The Sony FX2 also features an intuitive Variable FPS setting for creating time-lapses and slow-motion video, it can further de-squeeze 1.3 and 2.0x anamorphic footage, all in-camera.
Hybrid Still Image Capture
The Sony Cinema Line FX2 Camera offers the versatility of a hybrid camera in the Sony Cinema Line by improved still image capture capabilities and adding features such as Log shooting and user-LUT applications.
You will find a built-in toggle to switch between movie and still mode. Shoot 33MP JPG or HEIF images in S-Log3 for streamlined colour grading. You are even able to capture shot marks during internal video recording or playback. Flex or base ISO settings and S-Gamut3 or S-Gamut3.Cine colour spaces.
AI Subject Recording
A powerfull AI processing unit delivers multiple improvements in autofocus, auto framing, and stabilisation using deep learning.
The AI unit analyses colours, patterns, and depth. All this while maintaining sharp focus using real-time subject recognition of people, vehicles, animals and more.
Human and animal eye detection is improved by about 30% from the FX3 and FX30, which makes the FX2 ideal for capturing fast-paced action like wildlife and sports.
Comprehensive Stabilisation
During handheld shooting, the Sony FX2 combines in-body optical stabilisation with AI processing and the E-mount lens metadata. These are only some ways to eliminate camera shake.
Further featuring 5-axis in-body optical image stabilisation, Dynamic Active Mode provides a stable handheld shooting experience. You will also find the Framing stabiliser uses advanced AI while shake metadata are embedded into footage for post-production.
Connectivity and Compatibility
Enjoy expansive connectivity with the FX 2 and multiple ways of powering your camera, along with internal video recording, data output, and both wireless and USB streaming.
On the camera body, you will find a USB-C port for PD fast charging ot LAN link using a gigabit Ethernet adapter. Stream at 2.4/5 GHz over Wi-Fi, or 5 GB/s via USB-C connection.

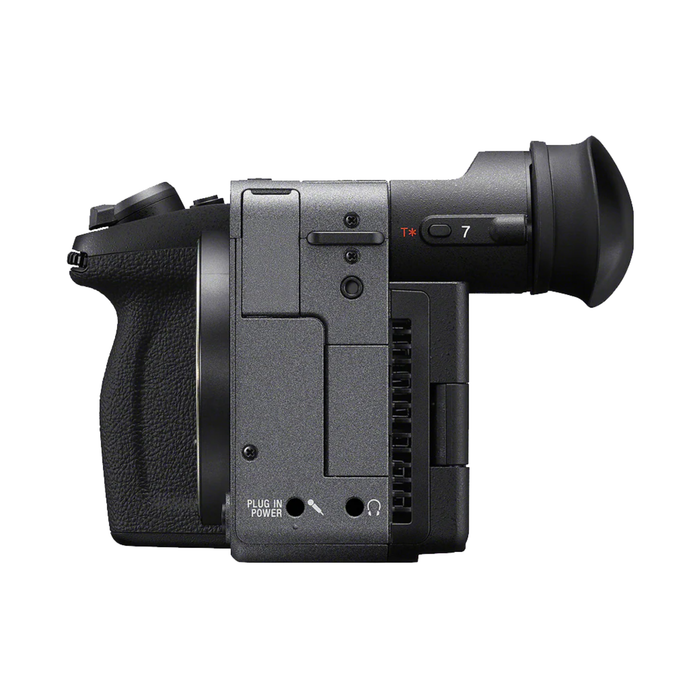

The camera body features one CFexpress Type A card slot, SDXC card slot, one SD card slot and one HDMI port. Multi-interface hot shoe, micro-USB port, and 3.5mm mic and headphone jacks.
Ergonomic Design
The Sony Cinema Line FX2 Camera is built from lightweight and sturdy Magnesium alloy with an updated heat-dissipating structure, along with a built-in cooling fan that ensures uninterrupted 4K60 video recording. You will also find an improved handgrip accommodating a single NP-FZ100 battery, and it sports one of the five 1/4"-20 female threads. Three of these threads are dedicated to adding accessories to the rig, and the remaining two are for mounting the camera to a plate.

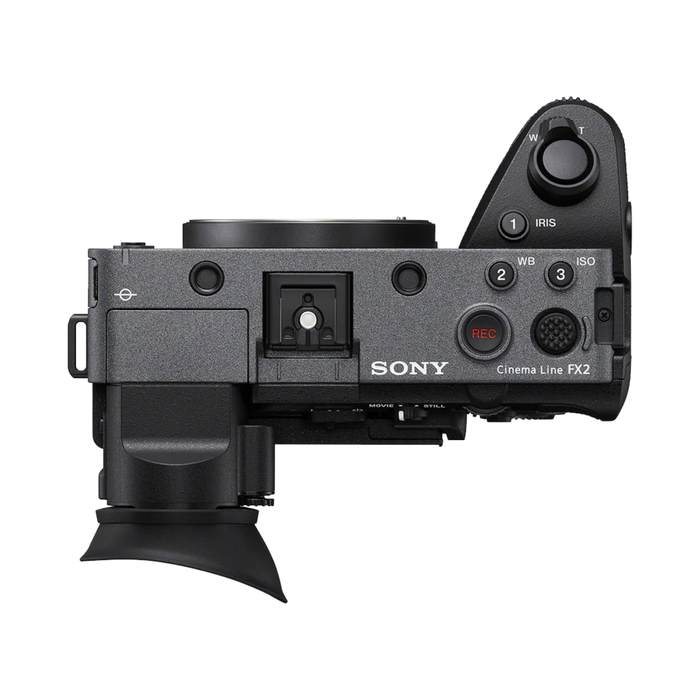

Several functions have dedicated controls, including the power switch, record button, movie/still switch, zoom lever, playback button, and control dials, while seven other buttons serve user-assignable functions.
Improved FX2 Attributes
Improvements to the Sony FX2 Digital Cinema Cameras include a Full-Frame, back-illuminated 33MP effective Exmor R CMOS sensor. It is capable of shooting still images in S-Log3 for flexible colour grading in post-production.
The FX 2 features AI-improved AF, framing, and advanced dynamic image stabilisation. 7K oversampling in full-frame mode and 4K resolution in Super 35 mode is included. Dual-base 800/4000 ISO during S-Log3 shooting.
You are able to extract stills during video recording or playback and apply user LUTs. The Sony FX-2 features a built-in 3.68m-dot 0.7x OLED electronic viewfinder with 0 to 90° tilt.
Common FX2/FX3 Attributes
Both the Sony FX2 and FX3 Digital Cinema Cameras feature the BIONZ XR processing unit with a dynamic range of 15+ stops and 10-bit 4:2:2 internal recording or 16-bit raw output via HDMI. You also have S-Cinetone, S-Log3, HLG, and Rec. 709 gamma options available.
FEATURES
Sony FX2 Digital Cinema Camera
- 33MP Full-Frame CMOS Exmor R Sensor
- 4K up to 60 fps | 1080p up to 120 fps
- 33MP Stills in S-Log3 at 800/4000 ISO
- AI-Powered Auto Focus and Framing
- Dynamic Active AI-Based Stabilization
- 10-Bit 4:2:2 XAVC S-I, 16-Bit Raw Output
- S-Cinetone/S-Log3/HLG, 15+ Stops DR
- 3.68m-Dot 0.7x OLED EVF with 90° Tilt
- CFexpress Type A and SD Card Slots
- 2.4/5 GHz Wi-Fi for 4K Live Streaming
Sony XLR-H1 XLR Handle Unit
- For FX3, FX30, and FX2 Cinema Cameras
- 2 x Combo XLR-1/4", 1 x 3.5mm Mic Inputs
- Physical Audio Controls
- Microphone Holder
- Securely Mounts to Multi Interface Shoe
- Three 1/4"-20 Accessory Mounting Threads
SPECIFICATIONS
| Imaging | |
| Lens Mount | Sony E |
| Lens Communication | Yes, with Autofocus Support |
| Sensor Resolution |
Actual: 34.1 Megapixel Effective: 33 Megapixel |
| Image Sensor | 35.9 x 23.9 mm (Full-Frame) CMOS |
| Image Stabilization | Sensor-Shift, 5-Axis |
| Built-In ND Filter | No |
| Internal Filter Holder | No |
| Capture Type | Stills & Video |
|
Exposure Control
|
|
| Shutter Type | Mechanical Focal Plane Shutter and Electronic Rolling Shutter |
| Shutter Speed |
1/8000 to 1 Second in Video Mode 1/8000 to 30 Seconds in Photo Mode |
| ISO/Gain Sensitivity |
Photo Dual Base: 800 / 4000 Native: 100 to 51,200 (50 to 204,800 Extended) Video Dual Base: 800 / 4000 Native: 100 to 51,200 (100 to 102,400 Extended) |
| Advertised Dynamic Range | 15 Stops |
| White Balance | Range: 2500 to 9900K |
|
Video Capture
|
|
| Internal Recording Modes |
H.264 ALL-Intra/H.264 Long GOP/MPEG-4 AVC/XAVC S 4:2:2 10-Bit UHD 4K (3840 x 2160) at 23.98/25/29.97/50/59.94 fps [100 to 200 Mb/s] 1920 x 1920 at 23.98/25/29.97/50/59.94 fps [50 Mb/s] H.264 ALL-Intra/H.264 Long GOP/MPEG-4 AVC/XAVC S-I 4:2:2 10-Bit DCI 4K (4096 x 2160) at 23.98/24.00/25/29.97/50/59.94 fps [240 to 600 Mb/s] UHD 4K (3840 x 2160) at 23.98/25/29.97/50/59.94 fps [240 to 600 Mb/s] 1920 x 1920 at 23.98/25/29.97/50/59.94 fps [89 to 222 Mb/s] H.264 ALL-Intra/H.264 Long GOP/MPEG-4 AVC/XAVC S 4:2:0 8-Bit UHD 4K (3840 x 2160) at 23.98/25/29.97/50/59.94 fps [60 to 150 Mb/s] 1920 x 1080 at 23.98/25/29.97/50/59.94/100/120 fps [16 to 100 Mb/s] H.265 ALL-Intra/H.265 Long GOP/XAVC HS 4:2:2 10-Bit UHD 4K (3840 x 2160) at 23.98/50/59.94 fps [50 to 200 Mb/s] H.265 ALL-Intra/H.265 Long GOP/XAVC HS 4:2:0 8-Bit UHD 4K (3840 x 2160) at 23.98/50/59.94 fps [30 to 150 Mb/s] |
| External Recording Modes |
4:2:2 8/10-Bit via HDMI DCI 4K (4096 x 2160) at 23.98/24.00/25/29.97/50/59.94 fps UHD 4K (3840 x 2160) at 23.98/25/29.97/50/59.94 fps HD (1920 x 1080) at 29.97/50/59.94 fps Raw 16-Bit via HDMI 4672 x 2628 at 23.98/24.00/25/29.97/50/59.94 fps |
| Fast-/Slow-Motion Support | Yes |
| Gamma Curve | HDR-HLG, Rec709, S Cinetone, Sony S-Log 3, Standard |
| Built-In Microphone | Stereo |
| Audio Recording | |
| IP Streaming | |
| Interface | |
| Media/Memory Card Slot |
Slot 1: CFexpress Type A / SD (UHS-II) Slot 2: SD/SDHC/SDXC (UHS-II) |
| Fast-/Slow-Motion Support | Yes |
| Gamma Curve | HDR-HLG, Rec709, S Cinetone, Sony S-Log 3, Standard |
| Built-In Microphone | Stereo |
| Audio Recording |
2/4-Channel 24-Bit 48 kHz LPCM Audio 2-Channel 16-Bit 48 kHz LPCM Audio |
| IP Streaming | |
|
Interface
|
|
| Media/Memory Card Slot |
Slot 1: CFexpress Type A / SD (UHS-II) Slot 2: SD/SDHC/SDXC (UHS-II) |
| Video I/O |
1x HDMI (Unspecified Signal) Output 1x USB-C 3.0 / 3.1/3.2 Gen 1 Output |
| Audio I/O |
1x 3.5 mm TRS Stereo Microphone Input 1x 3.5 mm TRS Stereo Headphone Output |
| Power I/O | 1x USB-C Input |
| Other I/O | 1x Micro-USB |
| Wireless |
2.4 GHz Bluetooth 5.0 2.4 / 5 GHz Wi-Fi (802.11a/b/g), Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Mobile App Compatible |
Yes: Android & iOS App Name: Sony | Creators' App |
| Global Positioning (GPS, GLONASS, etc.) | No |
| Monitor | |

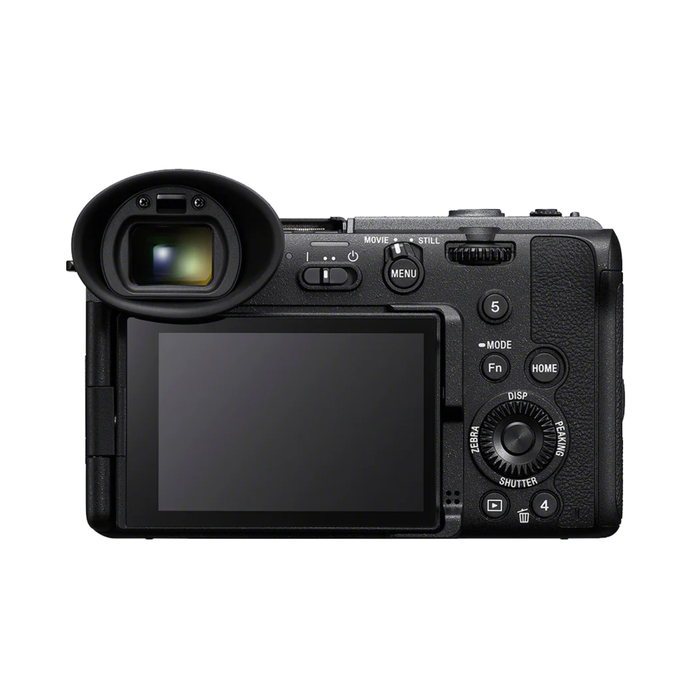

| Display Type | Primary Monitor: 180° Tilting 3" Touchscreen LCD |
| Resolution | Primary Monitor: 1,036,800 Dot |
| Viewfinder | |
| Type | Electronic (OLED) |
| Resolution | 3,686,400 Dot |
| Focus | |
| Focus Mode | Automatic, Continuous-Servo AF, Manual Focus, Touch AF & Shutter |
| Autofocus Points |
Photo Phase Detection: 759 Video Phase Detection: 627 |
| Autofocus Sensitivity | 4 to +20 EV |
| Power | |
| Battery Type | NP-FZ100 |
| Power Consumption | ≤6.6 W |
|
Environmental
|
|
| Operating Conditions | 0 to 40°C |
| Storage Conditions | -20 to 55°C |
| General | |
| Shoe Mount | 1x Intelligent Hot Shoe |

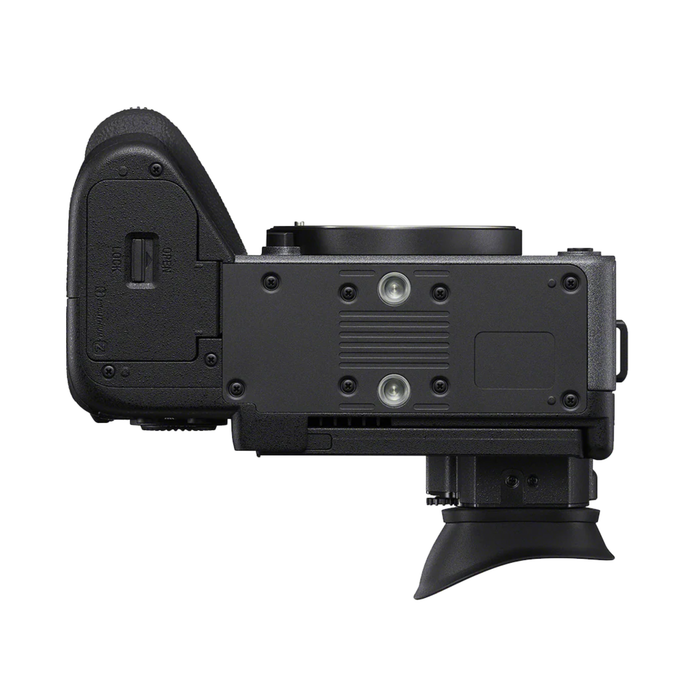

| Tripod Mounting Thread | 2x 1/4"-20 Female (Bottom) |
| Accessory Mounting Thread | 3x 1/4"-20 on Camera Body |
| Material of Construction | Magnesium Alloy |
| Dimensions (W x H x D) | 129.7 x 103.7 x 77.8 mm |
| Weight |
594 g (Body Only) 679 g (With Battery, Recording Media) |
IN THE BOX
- Sony FX2 Digital Cinema Camera
- Sony NP-FZ100 Battery (2280mAh)
- Sony ALC-B1EM Body Cap for E-Mount Cameras
- Sony Multi Interface Shoe Cap
- Sony Eyepiece Cup
