Sony DVF-EL1 Electronic Viewfinder
The Sony DVF-EL1 Electronic Viewfinder is a premium Full HD OLED viewfinder engineered for Sony professional cinema cameras, delivering exceptional image clarity, accurate colour reproduction, and precise manual focusing in any shooting environment. With its high-resolution OLED display, adjustable dioptre, and durable magnesium alloy construction, the DVF-EL1 provides filmmakers and broadcast professionals with a comfortable, reliable viewing experience for handheld, studio, and outdoor productions. Ideal for cinematographers, camera operators, and production crews who require critical focus and exposure accuracy on set.
DESCRIPTION
The Sony DVF-EL1 Electronic Viewfinder is a separately available accessory for your Sony FX5 to maximise your monitoring options. This high-quality 0.58" 7.08m-dot OLED display further features a 0.90x magnification.

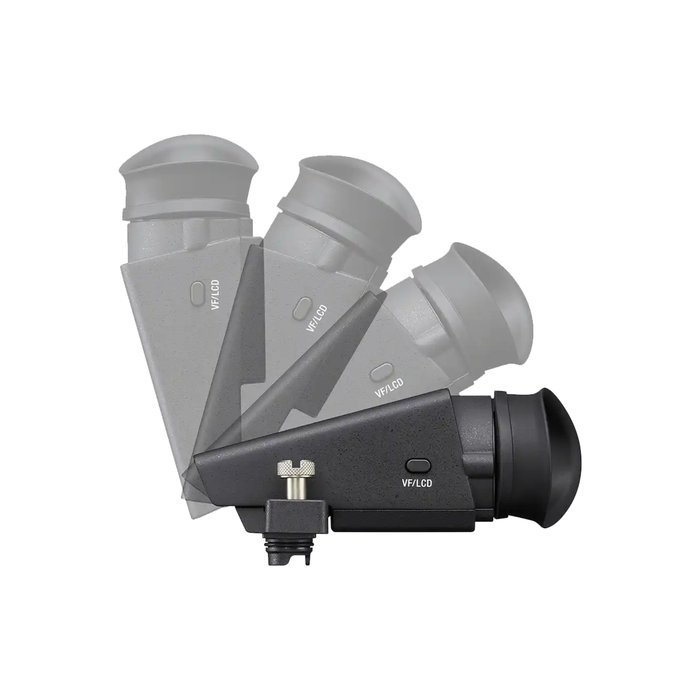

The Sony DVF-EL1 Electronic Viewfinder mounts directly to the top of the camera via the proprietary port, and to secure it, you will find two 1/4"-20 screws to secure it. It can also tilt upwards 90° for more flexible monitoring positions.
FEATURES
- For FX5 Cinema Camera
- 0.58" 7.08m-dot OLED Display
- 0.90x Magnification
- Mounts Securely to Top of Camera
- Tilts Upwards 90°
SPECIFICATIONS
| Display | |
| Panel Type | OLED |
| Display Size | 0.58" / 1.5 cm |
| Aspect Ratio | 16:9 |
| Contrast Ratio | Near Infinite (Black Pixels Emit No Light) |
| Optics | |
| Diopter Correction | -4.0 to +3.0 |
|
Inputs / Outputs
|
|
| Inputs/Outputs | 1x Proprietary Camera Input |
| Power Consumption | 1.6 W |
| General | |
| Operating Conditions | 0 to 40°C |
| Storage Conditions | -20 to 55°C |
| Dimensions | 94.9 x 59.9 x 46.1 mm |
| Weight | 95.7 g |
IN THE BOX
- Sony DVF-EL1 Electronic Viewfinder
- Sony Eyepiece Cup
- Sony Terminal Protect Cap
