Nikon Z R 6K Cinema Camera
GeneralThe Nikon ZR 6K Cinema Camera is a compact, Z-mount powerhouse combining RED color science with Nikon engineering. It offers 6K60 recording in REDCODE, Z-RAW, and ProRes RAW, up to 15+ stops of dynamic range, and advanced AI autofocus. With 7.5 stops of image stabilization, CFexpress and microSD support, and a bright 4" touchscreen, it's built for professional workflows in a small form factor.
GeneralThe Nikon ZR 6K Cinema Camera is a compact, Z-mount powerhouse combining RED color science with Nikon engineering. It offers 6K60 recording in REDCODE, Z-RAW, and ProRes RAW, up to 15+ stops of dynamic range, and advanced AI autofocus. With 7.5 stops of image stabilization, CFexpress and microSD support, and a bright 4" touchscreen, it's built for professional workflows in a small form factor.
DESCRIPTION
Nikon + RED Colour Science
In partnership with RED, Nikon provides a range of compatibility with production workflows in the Nikon ZR 6K Cinema Camera. These include REDCODE RAW R3D recording format along with Nikon's N-RAW, ProRes RAW HQ/422 HQ, and the high-quality compressed H.264 and H.265 codecs. REDCODE RAW (R3D NE) unlocks the same colour space (REDWideGamutRGB) and Log curve (Log3G10) as RED cameras.
The Nikon Z R 6 K is capable of capturing resolution up to 6K60, 4K120, and even 1080p240 for high frame rate, slow-motion recording.
Audio Capture
The Nikon ZR Camera uses dynamic 32-bit float and 24-bit recording, and standard 48 kHz linear PCM for full video compatibility is supported.
On the body itself, you will find built-in configurable microphones and a line input that provides the ability to record with an external microphone. Additionally, a headphone jack allows for monitoring audio.
Recording and Output
The Nikon Z R Camera records to a single CFexpress Type B card found in the battery door to keep the body as compact as possible, while a microSD card slot is available for proxy recording.
You will also find a micro-HDMI output allowing for output to a display or recording device.
Advanced Autofocus
The Nikon ZR 6K Cinema Camera employs advanced autofocus features powered by deep learning that provide up to 9-subject detection autofocus, with automatic tracking of people, animals and vehicles.

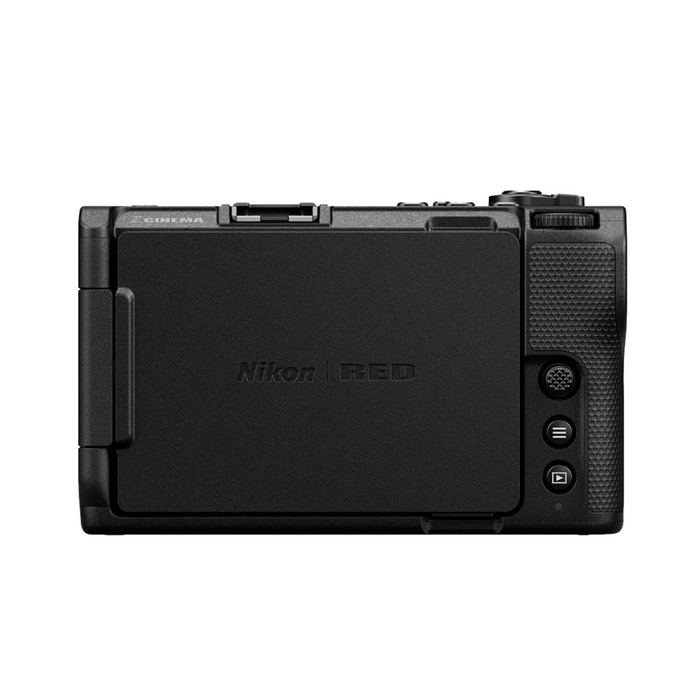

Large, Bright Display
A built-in 4" vari-angle touchscreen features DCI-P3 colour gamut, 1000 cd/m² brightness, and a 3.07 million dot resolution for easy and bright viewing.
When flipping the ZR from a horizontal to a vertical orientation, the screen can automatically make changes for ease of use.
Custom LUTs
The camera provides the ability for the operator to load up to 10 LUTs into the camera for real-time preview on its display.
Lenses and Image Stabilisation
With Nikon's Z lens mount, you can use a wide variety of lenses, with integrated image stabilisation of up to 7.5 stops, providing a smooth and steady image.
Dual-Base ISO
The Nikon ZR provides extended ISO sensitivity to the base ISO with its dual-base ISO, providing 800/6400 for both Log3G10 and N-Log profiles.
Frame.io Integration
The companion app to the phone allows for streamlining of your workflow by connecting your phone to the camera and utilising the optional Frame.io cloud service that makes asset control, post production, and live streaming easy.
Power Options
A single EN-EL15c battery powers the Nikon ZR, or power can be supplied via USB-C with an external power source.
Ultracompact Design
The Nikon ZR 6K Cinema Camera is the size of a small mirrorless camera but is packed with cinema camera technologies.
Due to the compact form factor, it can be mounted to a vehicle, stabilised on a gimbal, or perform steadycam, drone, or POV shots.
FEATURES
- Fusion of RED + Nikon Cinema Technology
- 6K Full-Frame Z-Mount Cinema Camera
- REDCODE RAW R3D + N-RAW Recording
- ProRes RAW/HQ, H.265/H.264 Codecs
- 32-Bit Float Audio, Dual-Base ISO
- Bright, Folding 4" DCI-P3 Display
- Built-In 3D LUTs, Digital Accessory Shoe
- Dual Built-In Microphones
- 15+ Stops Advertised Dynamic Range
- Frame.io Cloud Integration
SPECIFICATIONS
| Imaging | |
| Lens Mount |
Nikon Z |
| Lens Communication |
Yes: with Autofocus Support |
| Image Sensor |
35.9 x 23.9 mm (Full-Frame) CMOS |
| Sensor Resolution |
Effective: 24.5 Megapixel |
| Image Stabilization |
Sensor-Shift, 5-Axis |
| Built-In ND Filter |
No |
| Built-In CC Filter |
No |
| Internal Filter Holder |
No |
| Capture Type |
Stills & Video |
|
Exposure Control |
|
| Shutter Type |
Electronic Rolling Shutter |
| Shutter Speed |
Electronic Shutter 1/16000 to 900 Seconds |
| Shutter Angle |
5.6 to 360° |
| ISO/Gain Sensitivity |
Native: 800 Native: 6400 |
| Advertised Dynamic Range |
15 Stops |
|
Focus |
|
| Focus Modes |
Automatic |
| Video Capture |
|
| Internal Recording |
ProRes RAW HQ/Raw/REDCODE RAW UHD 6K (6000 x 3000) up to 60.00 fps DCI 4K (4096 x 2160) up to 120 fps UHD 4K (3840 x 2160) up to 120 fps 1920 x 1080p up to 240 fps |
| Video Output |
Micro-HDMI 3840 x 2160 |
| Fast-/Slow-Motion Support |
Yes |
| Gamma Curve |
Nikon N-Log, REDWideGamutRGB |
| Built-In Microphone |
Stereo |
| Interface | |
| Media/Memory Card Slot |
Slot 1: CFexpress Type B Slot 2: microSD/microSDHC/microSDXC (UHS-I) |
| Internal Storage |
No |
| Video I/O |
1x Micro-HDMI Output |

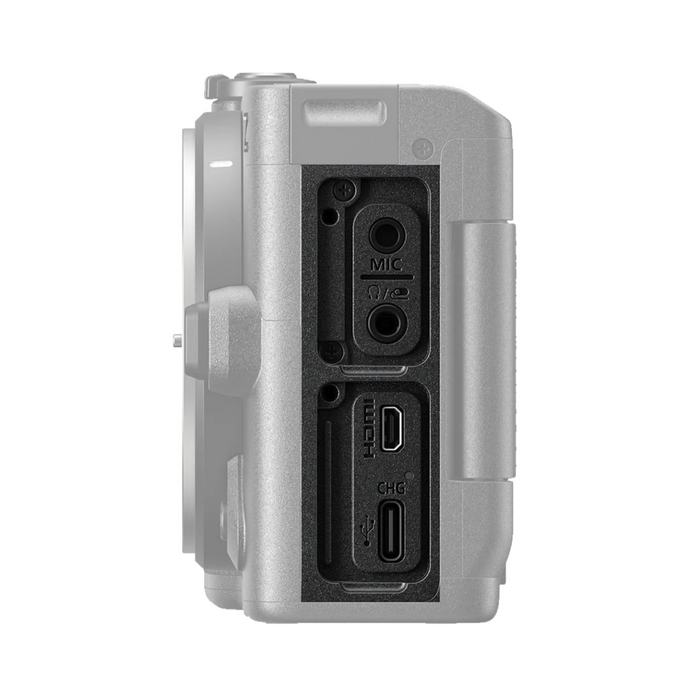

| Audio I/O |
1x 3.5 mm TRS Stereo Mic/Line Input 1x 3.5 mm TRS Stereo Headphone Output |
| Power I/O |
1x USB-C Input |
| Other I/O |
1x USB-C Data Output (Shared with Power Input) |
| Wireless | Wi-Fi / Bluetooth |
| Mobile App Compatible |
Yes: Android & iOS |
| Global Positioning (GPS, GLONASS, etc.) |
No |
| Monitor | |
| Display Type |
Primary Monitor: Articulating 4" Touchscreen LCD |
| Power | |
| Battery Type |
Nikon EN-EL15c |
| General | |
| Shoe Mount |
1x Intelligent Hot Shoe |
| Tripod Mount |
1x 1/4"-20 Female (Bottom) |
| Accessory Mounting Thread |
No |
| Dimensions (W x H x D) |
133 x 80.5 x 48.7 mm |
| Weight | 540 g (Body Only) |
IN THE BOX
- Nikon ZR 6K Cinema Camera
- Nikon EN-EL15c Lithium-Ion Battery (2280mAh)
- Nikon UC-E25 USB Cable
- Nikon BS-D1 Digital Accessory Shoe Cover
- Nikon BF-N1 Body Cap
- Nikon AN-DC26 Camera Strap
