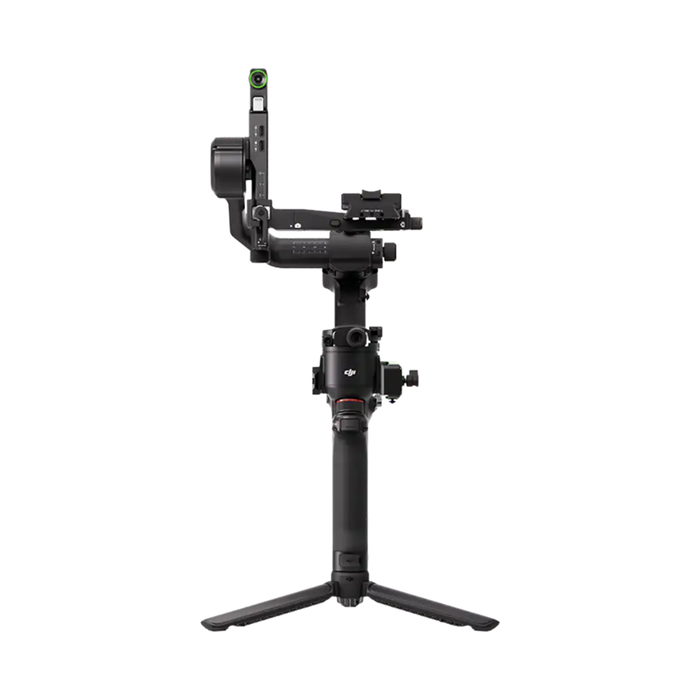

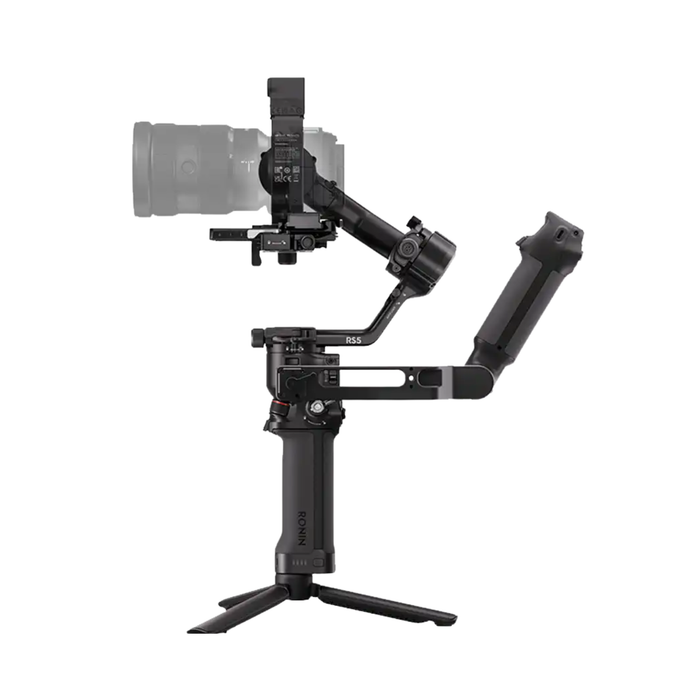

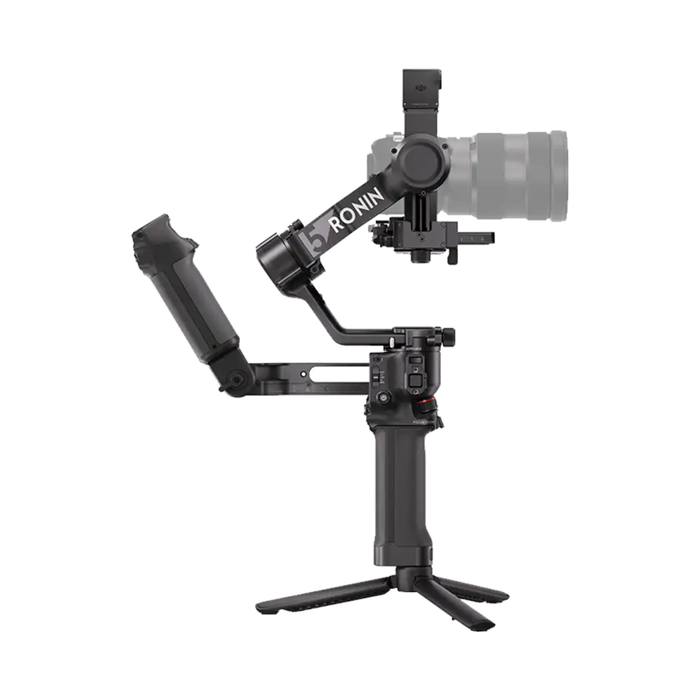

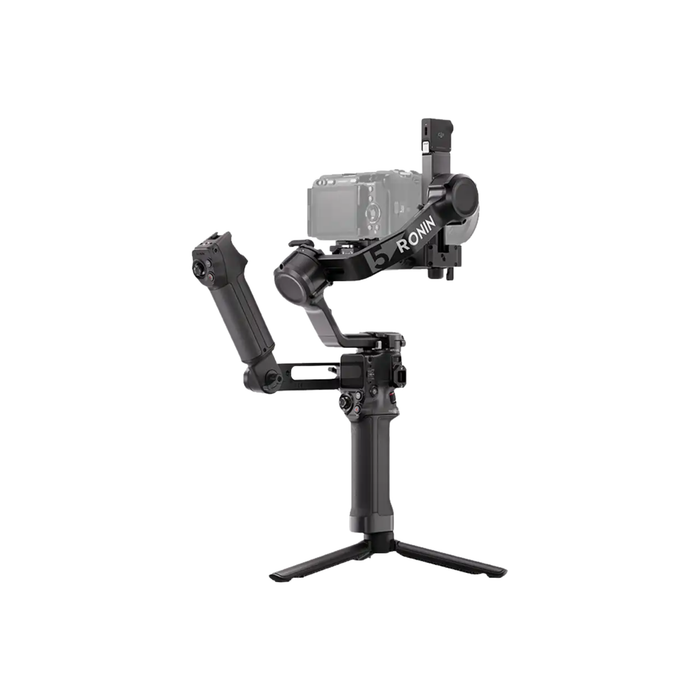

DJI RS 5 Gimbal Stabilizer Combo with AI Tracking Module and Briefcase Handle
Create stunning and smooth video footage with the latest DJI RS 5 Gimbal Stabilizer Combo with AI Tracking Module and Briefcase Handle. The gimbal delivers a flexible and efficient shooting experience to solo video creators as well as independent crews. Featuring a touchscreen for intuitive operation, fine-tuning knobs allow for perfect balancing. This is all backed by faster charging times and extended battery life.
Create stunning and smooth video footage with the latest DJI RS 5 Gimbal Stabilizer Combo with AI Tracking Module and Briefcase Handle. The gimbal delivers a flexible and efficient shooting experience to solo video creators as well as independent crews. Featuring a touchscreen for intuitive operation, fine-tuning knobs allow for perfect balancing. This is all backed by faster charging times and extended battery life.
DESCRIPTION
Intelligence Meets Stability

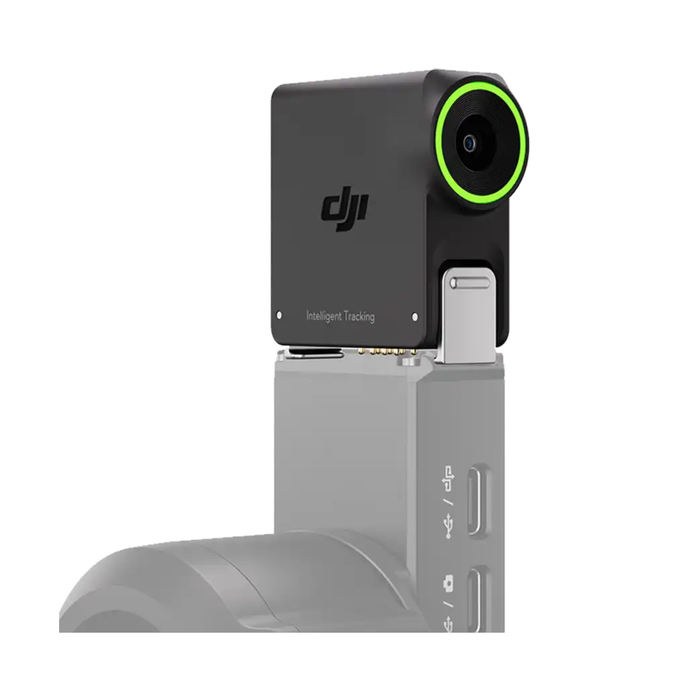

DJI RS Enhanced Intelligent Tracing Module
The DJI RS Enhanced Tracking Module comes with the DJI RS 5 Gimbal Stabilizer Combo, allowing you to easily track people, vehicles and pets in your frame. Featuring a range of up to 10 meters when tracking a person, and it can reacquire the subject if they temporarily leave the frame.
Next-Gen Algorithm, Enhanced Torque
The DJI RS 5 Gimbal Stabilizer Combo's peak motor torque is increased to up to 50% over the previous iteration in the DJI RS Series to provide added stability in fast-moving scenes. Featuring the 5th-Gen RS Stabilisation Algorithm that further enhances stabilisation for walking, running, and vertical shooting.
Compact Body With up to 3kg Payload
With a payload of up to 3kg, the DJI Ronin RS5 Gimbal Stabilizer Combo can carry and stabilise mainstream mirrorless cameras and lenses with ease. This gimbal weights is at under 1.5kg with the battery grip and quick-release plates. You can also easily switch to vertical shooting without any added accessories.
Experience Redefined, Creativity Ignited
New DJI Electronic Briefcase Handle
You will also find a new DJI Electronic Briefcase Handle included that offers you intuitive single-handed operation with a joystick and buttons to control the gimbal and camera for even more creative shots.
Longer Runtime, Fully Charged in 1 Hour
Now you are able to fully charge your RS5 in just about one hour (this is an impressive 60% improvement on the previous version. Above this, the standard battery allows for up to 14 hours of standby time, which is about a 15% improvement.
New Bluetooth Shutter Support for Panasonic and Fujifilm
Further compatible cameras from Sony, Canon, and Nikon, the RS5 Bluetooth Shutter now also supports specific Panasonic and Fujifilm cameras. This enables wireless control of shutter, zoom, and Clear Image Zoom with no cables required.
Z-Axis Indicator
The new Z-Axis Indicator gives you instant feedback to fine-tune your footsteps for steadier, more professional shots.
Control in Detail, Freedom in Motion

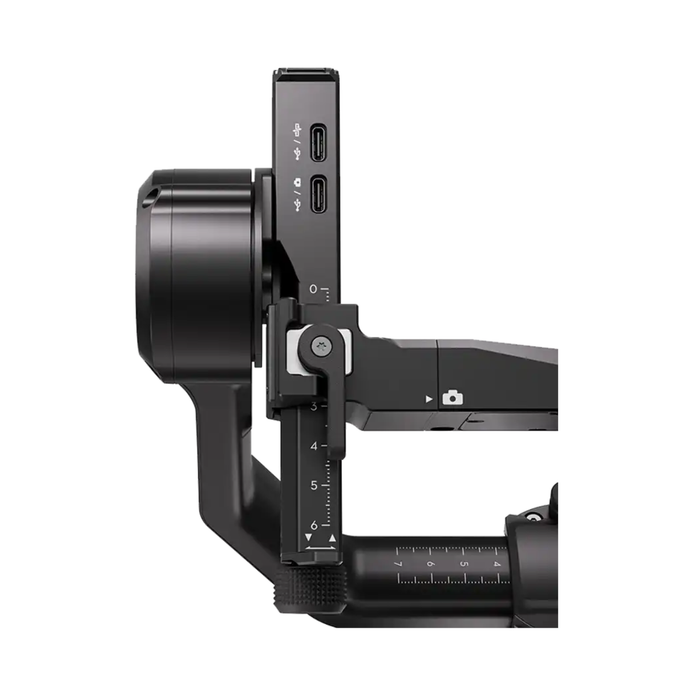

Smooth and Precise Balancing
On the DJI Ronin RS 5 Gimbal Stabilizer Combo, you will find fine-tuning knobs on each axis arm that enable quick and precise balancing through a loascrew mechanism. Even with heavier loads, you can expect smooth and precise balancing through the added Teflon inlayers.
3-rd-Gen Native Vertical Shooting
With 3rd-Gen Native Vertical Shooting, you can switch to vertical in just a few seconds. Simply loosen and press the single side knob, remove the horizontal plate and tighten it back in the 90° orientation.
FEATURES
- Lightweight 1.46kg Body, 3kg Payload
- Z-Axis Vertical Stabilisation
- Active Tracking Module, Briefcase Handle
- One-Hour Full Charge with 65W PD Charger
- 2nd Gen Automated Axis Locks
- Separate Electronic Control Handle
- OLED Touchscreen with Auto-Lock
- 2nd Gen Native Vertical Shooting
- Joystick or Bluetooth Mode Switching
- Teflon-Coated Axes, Enhanced Balancing
SPECIFICATIONS
| Gimbal | |
| Load Capacity | 3 kg |
| Number of Axes | Three: Pitch (Tilt) / Roll / Yaw (Pan) |
| Rotation Range | Mechanical Range Yaw (Pan): 360° Roll: Pitch (Tilt): |
| Follow Speed | Pan/Tilt/Roll: 360°/s |
| Counterweight | Available, Not Included |
| Joystick Controller | Available (Not Included) |
|
Compatibility
|
|
| Camera Control | On Compatible Models |
| Camera Mounting Screw | 1x 1/4"-20 Male |
| Connectivity | |
| Inputs/Outputs |
3x USB-C (Control / Video) 1x USB-C (Power) |
| Wireless | 2.4 GHz Radio/RF / Bluetooth 5.1 |
| Mobile App Compatible |
Yes: Android & iOS App Name: Ronin App |
| Battery | |
| Battery Type | Built-In |
| Battery Runtime | 14 Hours |
| Battery Charging Time | 1 Hours |
| Power | |
| Operating Voltage | 7.2 VDC |
| General | |
| Display Type | Fixed Touchscreen OLED |
| Operating Conditions | -20 to 45°C |
| Materials | Aluminium Alloy |
| Accessory Mounting |
1 x 1/4"-20 Female 2 x NATO Rail |
| Weight | 1.46 kg |
|
Transmitter
|
|
| Transmitter I/O |
4 x USB-C (Power/Camera Control/Video Transmission/Focus Motor) 2 x NATO |
| Transmission System | Bluetooth 5.1 2.4 GHz |
IN THE BOX
DJI RS 5 Gimbal Stabilizer Combo with AI Tracking Module and Briefcase Handle
- DJI RS 5 Gimbal Stabilizer
- DJI RS Enhanced Intelligent Tracking Module
- DJI RS 5 Upper Quick-Release Plate
- DJI RS 5 Lower Quick-Release Plate
- DJI Electronic Briefcase Handle
- DJI Multi-Camera Control Cable (USB-C, 30 cm)
- DJI L-Shaped Cable (USB-C, 13 cm)
- DJI Lens-Fastening Support
- DJI BG33 Battery Grip
- DJI Quick-Open Tripod
- DJI Screw Kit
- DJI Carrying Case

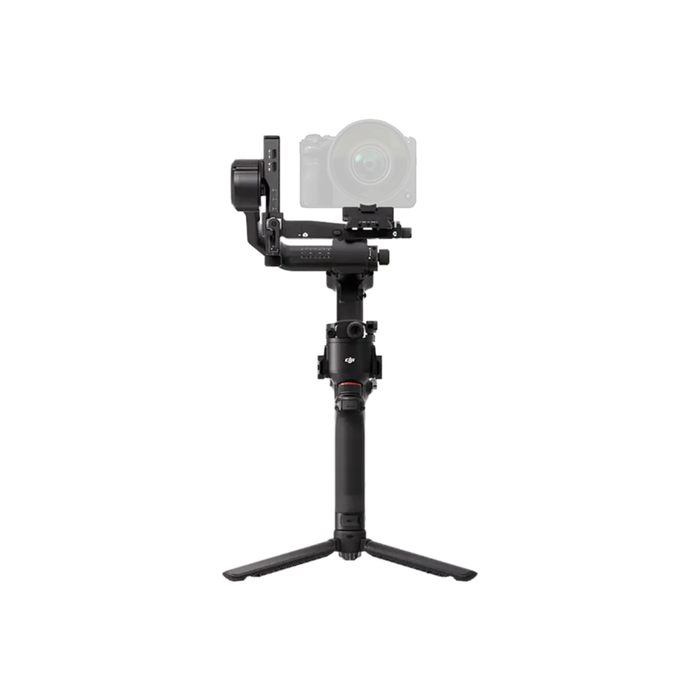

DJI RS 5 Gimbal Stabilizer standard
- DJI RS 5 Gimbal Stabilizer
- DJI RS 5 Upper Quick-Release Plate
- DJI RS 5 Lower Quick-Release Plate
- DJI Multi-Camera Control Cable (USB-C, 30 cm)
- DJI Lens-Fastening Support
- DJI BG33 Battery Grip
- DJI Quick-Open Tripod
- DJI Screw Kit
