DJI Osmo Mobile 7 Smartphone Gimbal
The DJI Osmo Mobile 7 Smartphone Gimbal allows for accurate tracking of subjects while maintaining stable footage. This is due to the quick-launching construction, robust 3-axis motors and improved Active-Track 7.0.
You will find an updated version of the magic phone clamp with the DJI OM 7 Smartphone Gimbal accommodating mobile phones up to 3.3" (84mm) wide in a fast mounting interface.

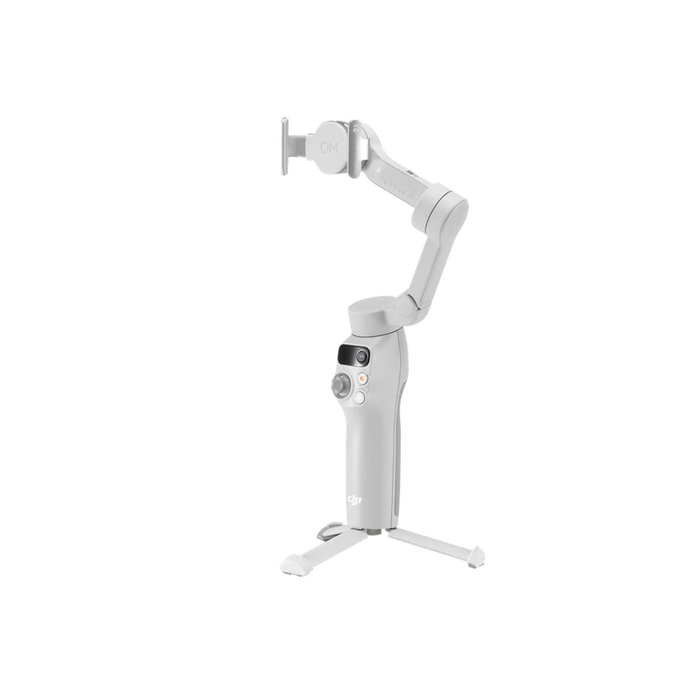

The built-in battery offers a runtime of up to 10 hours and can be fully charged in about 2.5 hours using the included USB-C cable. The DJI Osmo Mobile 7 Smartphone Gimbal features a built-in tripod allowing for placing the gimbal on a flat surface, along with a 1/4"-20 thread for adding additional accessories.
The DJI Osmo Mobile 7 Smartphone Gimbal allows for accurate tracking of subjects while maintaining stable footage. This is due to the quick-launching construction, robust 3-axis motors and improved Active-Track 7.0.
You will find an updated version of the magic phone clamp with the DJI OM 7 Smartphone Gimbal accommodating mobile phones up to 3.3" (84mm) wide in a fast mounting interface.
The built-in battery offers a runtime of up to 10 hours and can be fully charged in about 2.5 hours using the included USB-C cable. The DJI Osmo Mobile 7 Smartphone Gimbal features a built-in tripod allowing for placing the gimbal on a flat surface, along with a 1/4"-20 thread for adding additional accessories.
DESCRIPTION
Quick-Launching Device
The DJI Osmo Mobile 7 Smartphone Gimbal features a one-action unfolding design and includes an updated smartphone mount to easily attach your smartphone up to 3.3" (84mm) wide without the need to remove the phone from its protective case.
A built-in intelligent sensor automatically detects and aligns your smartphone and adjusts the gimbal accordingly for optimal balance.
3-Axis Stabilisation and ActiveTrack 7.0
ActiveTrack 7.0 allows for greater stability over longer distances and tracks human shapes without the need to make manual selections. Continued filming is possible with humans being tracked even after leaving the frame using automatic zoom and gimbal movements.
By simply tapping on the screen of your phone, Smart Capture allows you to switch between multiple subjects detected. Smooth tracking, pinpoints to the preferred subject (whether it is a human or an animal) and it maintains tracking regardless of movement or obstruction.
Intuitive Onboard Controls
The DJI OM 7 Smartphone Gimbal features multiple onboard controls, these include an integrated joystick and multiple other buttons on the handle grip. Further, you will also find a system indicator display showing battery life and gimbal mode.
Using Bluetooth 5.3 connectivity, you are able to use a zoom slider to adjust the focal length and zoom on the smartphone. Simply by pressing the back trigger three times, it will automatically switch to selfie mode.
The controllable range is 309° pan, 312° roll, 60° tilt, these are achieved by a speed of up to 120° per second.
Intelligent Shooting Modes
Further the usual Pan/Tilt follow modes and SpinShots, you will find more intelligent shooting modes. These include:
Timelapse, Motionlapse and Hyperlapse to seamlessly blend time.
Not one but three different Panorama modes enable capturing wider expanses.
Parents and Kids Mode
Another new feature built into the DJI Osmo Mobile 7 Smartphone Gimbal is the Parent and Kids Mode making you your family's photographer. Automatically capture moments with your children due to the enhanced kids tracking and access to a variety of templates to create digital images.
Battery Life and Phone Charging
The internal battery can keep your DJI OM 7 sunning for up to 10 hours and when depleted, the battery can be charged full in about 2.5 hours using the included USB-C cable.
The USB-C port can also be used as a power output that can be used to charge your mobile phone when the gimbal is switched off.
DJI Mimo App
The DJI Osmo Mobile 7 Smartphone Gimbal will automatically keep track of you as you move with Activetrack 7.0 built into the App as well as the gimbal itself.
You can also use your Apple Watch to view the camera feed, control the gimbal and enable ActiveTrack remotely. Within the Mino App, you will find exclusive video templates that make it an easy and intuitive experience to create videos.
FEATURES
- Extendable Smartphone Gimbal Stabilizer
- Magnetic Phone Clamp, Robust Motors
- 300g Load Capacity, Built-In Tripod
- ActiveTrack 7.0, Follow Modes
- Supports Smartphones up to 84mm Wide
- ShotGuides, AI Editor
- Supports Phone Charging via USB-C
- Control Gimbal/Phone with DJI Mimo App
SPECIFICATIONS
| Gimbal | |
| Load Capacity |
170 to 300 g |
| Number of Axes |
3: Pitch (Tilt), Roll, Yaw (Pan) |
|
Rotation Range |
|
| Controllable Range |
Yaw (Pan): 309° (-99 to 210°) Roll: 312° (-67 to 245°) Pitch (Tilt): 60° (-20 to 40°) |
| Mechanical Range |
Yaw (Pan): 331° (-109 to 222°) Roll: 332° (-77 to 255°) Pitch (Tilt): 324° (-224 to 100°) |
| Follow Speed |
120°/s |
| Compatibility | |
| Camera Control |
On Compatible Smartphones |
| Smartphone Dimensions |
Thickness: 0.3 to 0.4" / 6.9 to 10 mm Width: 2.6 to 3.3" / 67 to 84 mm |
| Connectivity | |
| Inputs/Outputs |
1x USB-C |
| Wireless Frequency |
2.4 GHz |
| Wireless Protocol |
Bluetooth (Unspecified Type) |
| Bluetooth (Unspecified Type) |
Yes: Android & iOS App Name: DJI Mimo |
|
Battery |
|
| Battery Type |
1x Built-In |
| Battery Capacity |
3350 mAh / 12.06 Wh |
| Battery Runtime |
10 Hours |
| Battery Charging Time |
2.5 Hours |
| Battery Chemistry |
Lithium-Ion Polymer (LiPo) |
| General | |
| Display Type |
No |
| Environmental Resistance |
No |
| Operating Conditions |
5 to 40°C |
| Mounting |
1 x 1/4"-20 Female |

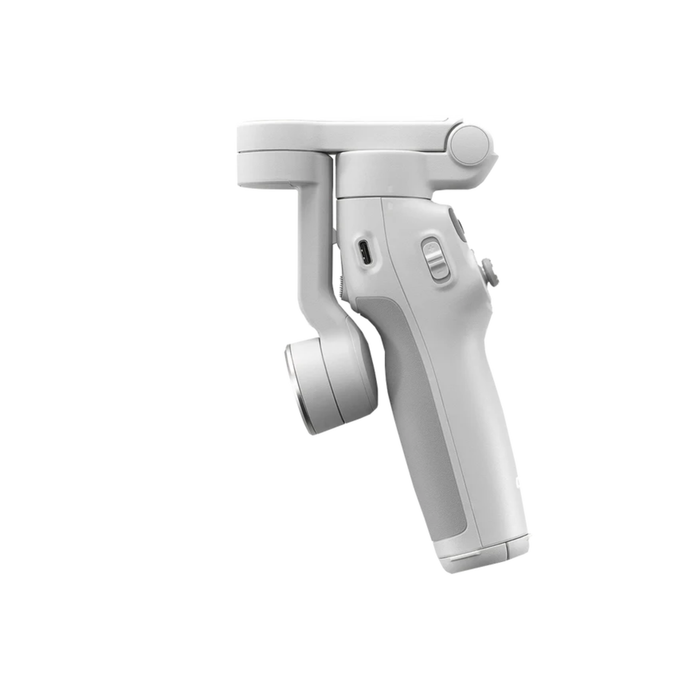

| Dimensions | 179 x 95 x 39 mm (Folded) 278 x 107 x 93 mm |
| Weight | 300 g |

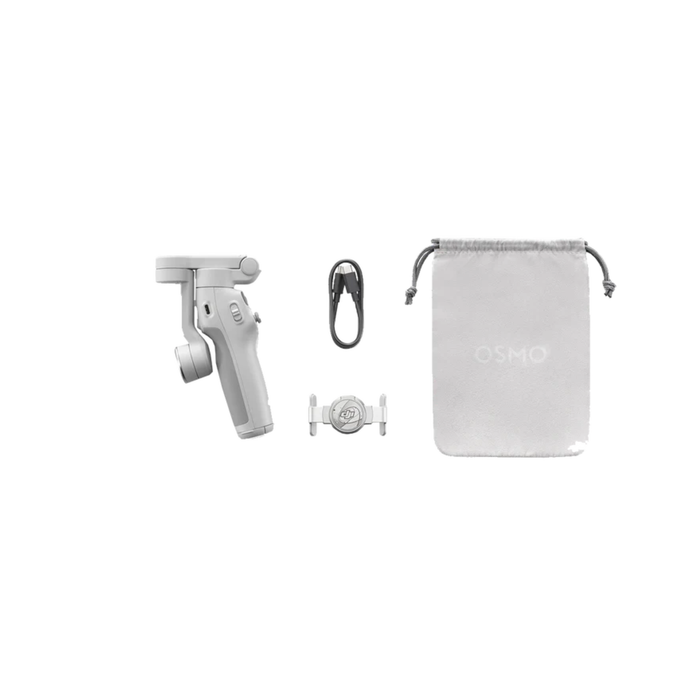

IN THE BOX
- DJI Osmo Mobile 7 Smartphone Gimbal
- DJI OM Magnetic Phone Clamp 4 for Osmo Mobile 7 Series
- DJI USB-C Power Cable (19.7")
- DJI Storage Pouch
