    BlackMagic Mini Converter - SDI to Analog

    Original price R 5,130.00 - Original price R 5,130.00
    Original price
    R 5,130.00
    R 5,130.00 - R 5,130.00
    Current price R 5,130.00

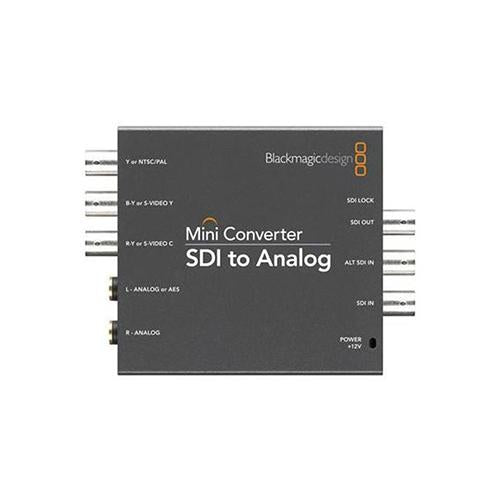

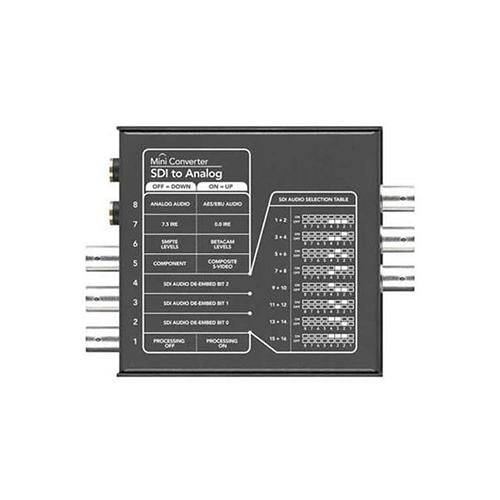

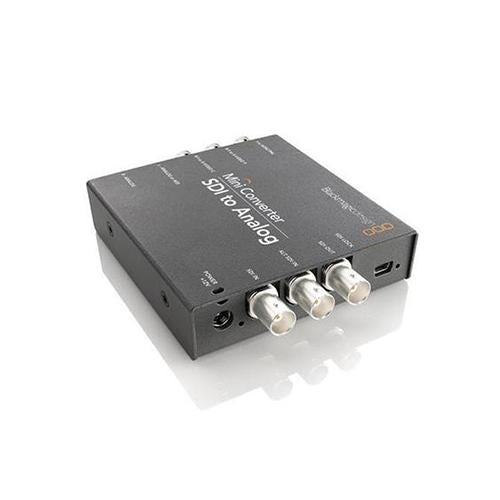

    The Mini Converter SDI to Analog from Blackmagic will accept an SDI input signal and convert it to HD/SD component, NTSC, PAL, or S-video output. Also, if your SDI signal has audio embedded, the Converter will let you first de-embed the audio so that you can output it via the analog outs.

    DESCRIPTION
    SDI to Analog Conversion

    Use this device to convert SDI video signals to analog output.

    Embedded Audio

    The Converter can de-embed audio from an SDI signal so that you can output it via the analog outs.

    FEATURES
    • SDI to Analog Conversion
    SPECIFICATIONS
    Input (1) SDI (switchable between SD, HD & 3Gbs SDI)
    Output (1) component, NTSC, PAL, and S-video
    (1) SDI (switchable between SD, HD & 3Gbs SDI)
    Audio Analog:
    (2) channels of professional balanced analog with standard 1/4" jack connections
    Digital:
    (2) channels of professional balanced digital with standard 1/4" jack connections, AES/EBU standard
    Power 12VDC
    Dimensions (HxWxD) Not specified by manufacturer
    Weight Not specified by manufacturer
    - -
    PACKAGING INFO
    Package Weight 1.15 lb
    Box Dimensions (LxWxH) 5.6 x 5.4 x 2.6"
    IN THE BOX

    Blackmagic SDI to Analog Mini Conveter
