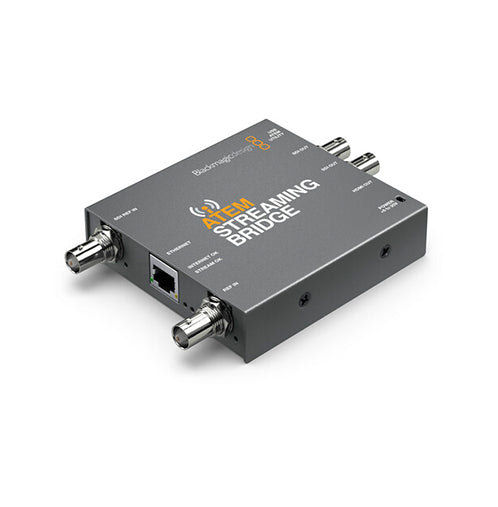

BlackMagic Design ATEM Streaming Bridge for ATEM Mini Pro Streaming Switchers
The BlackMagic Design ATEM Streaming Bridge for ATEM Mini Pro Streaming Switchers is designed to enable you to convert any IP signal to any ATEM Mini Pro unit into SDI and HDMI video. This unit features two SDI outputs as well as one HDMI output with supports for resolutions up to 1080p60.
The BlackMagic Design ATEM Streaming Bridge for ATEM Mini Pro Streaming Switchers is designed to enable you to convert any IP signal to any ATEM Mini Pro unit into SDI and HDMI video. This unit features two SDI outputs as well as one HDMI output with supports for resolutions up to 1080p60.
DESCRIPTION
The BlackMagic Design ATEM Streaming Bridge for ATEM Mini Pro Streaming Switchers can be connected to the same LAN that a BlackMagic ATEM Pro is connected to, and the two units will find each other to enable streaming across the network.
FEATURES
- For Any ATEM Mini Pro Streaming Switcher
- HDMI and SDI Outputs
- Up to 1080p60 Resolution Output
- Direct, Network, and Internet Connection
- IP Addressable, Software Controllable
SPECIFICATIONS
Input | |
Audio Input Connectors | None |
Output | |
Video Output Connectors |
2 x BNC (3G-SDI / HD-SDI) 1 x HDMI (HDMI 1.4) |
Output Video Format |
HDMI 1080p: 23.98/24/25/29.97/30/50/59.94/60 fps 1080i: 50/59.94/60 fps SDI (10-Bit 4:2:2 YUV) 1080p: 23.98/24/25/29.97/30/50/59.94/60 fps 1080i: 50/59.94/60 fps |
Audio Output Connectors | None |
Standards | |
Video Standard Compliance | SMPTE 259M/292M/296M/424M-B/425M-A/425M-B |
Connectivity | |
Other I/O |
1 x RJ45 2 x BNC Reference |
Expansion Slots | None |
IP Streaming | |
Video IP Decoding | H.264: 1920 x 1080 |
Power | |
Power Connector | 1 x Barrel (6 to 30 VDC) Input |
Power Consumption | Device: 6 W |
Environmental | |
Operating Temperature | 32 to 104°F / 0 to 40°C |
Storage Temperature | -4 to 140°F / -20 to 60°C |
Operating Humidity | 0 to 90% (Recommended) |
General | |
Certifications | CE, FCC, Kcc, as per Manufacturer |
Dimensions | 5.28 x 3.63 x 0.9" / 13.41 x 9.22 x 2.29 cm |
Weight | 8.1 oz / 230 g |
Packaging Info | |
Package Weight | 485g |
Box Dimensions (LxWxH) | 5.8 x 5.5 x 2.7" |
IN THE BOX
- BlackMagic Design ATEM Streaming Bridge for ATEM Mini Pro Streaming Switchers
- Universal Power Supply with International Adapters
