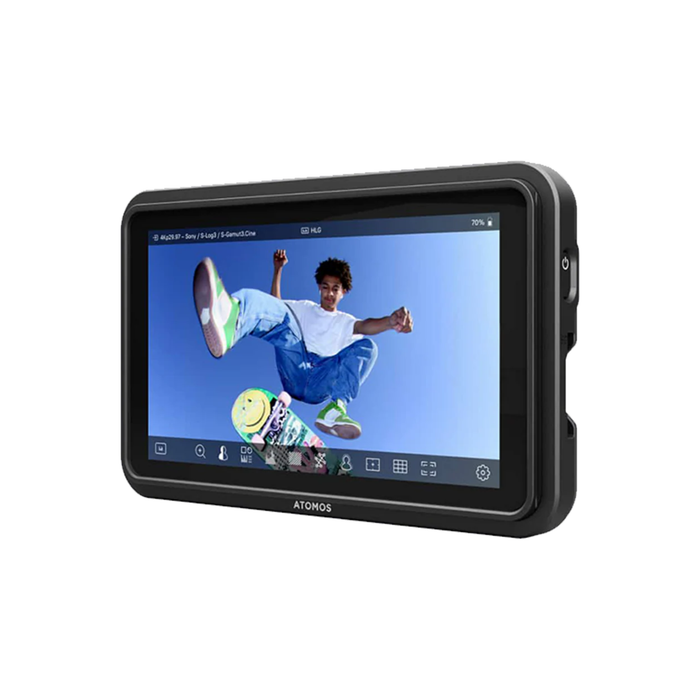

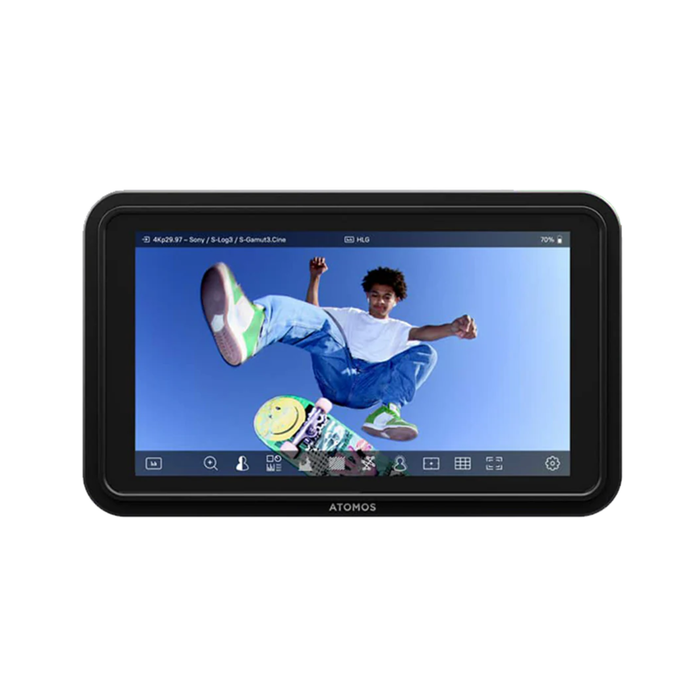

Atomos Shinobi GO 5" Touchscreen HDR Video/Photo Monitor
The Atomos Shinobi GO 5" Touchscreen HDR Video/Photo Monitor is a slim, lightweight, high-brightness, 5-inch 1500nit HDR monitor ideal for content creators and photographers. The Atomos Shinobi GO offers many of the high-quality monitoring tools as the Shinobi Two, but with the exclusion of camera control, touch to focus, and other professional monitoring features such as EL ZONE
The Atomos Shinobi GO 5" Touchscreen HDR Video/Photo Monitor is a slim, lightweight, high-brightness, 5-inch 1500nit HDR monitor ideal for content creators and photographers. The Atomos Shinobi GO offers many of the high-quality monitoring tools as the Shinobi Two, but with the exclusion of camera control, touch to focus, and other professional monitoring features such as EL ZONE
DESCRIPTION
The Atomos GO Shinobi includes many professional monitoring tools such as false colour, zebra, histogram, and vectorscope. When on longer shoots or flexibility is needed, power can be provided using the USB-C port using a power bank, or (separately available Sony NP-F Type Batteries.
The Atomos Shinobi GO 5" Touchscreen HDR Video/Photo Monitor is for the individual who does not need camera control or owns a camera that supports it, and who is looking for a high-quality, daylight-viewable monitor at a more affordable price point.

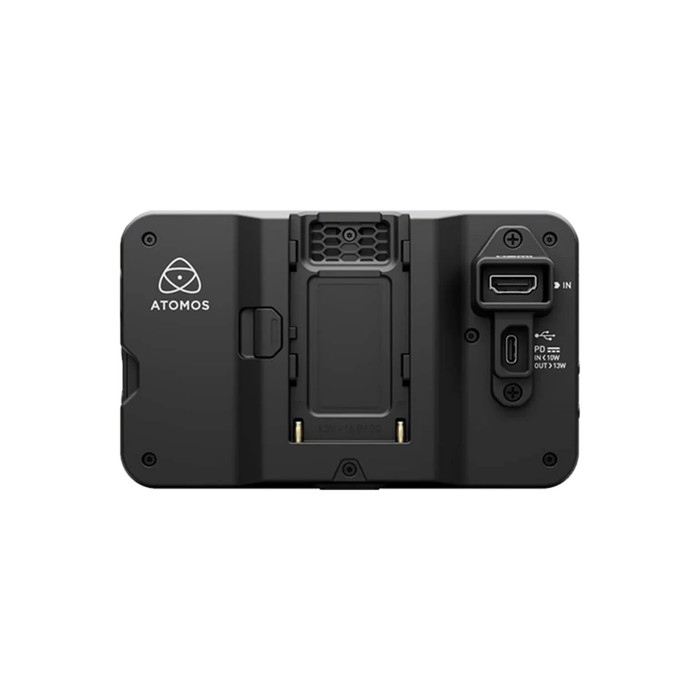

The Atomos Shinobi GO features a locking connector adapter for the HDMI and USB-C ports. When used with (separately available) Atomos locking cables, accidental disconnections during shoots are greatly reduced. Both the Shinobi GO and Shinobi 2 share the same size sun hood and other accessories, making it easy to share batteries, cables and other accessories. Perfect for the professional with multiple devices and mix and match between camera set-ups.
FEATURES
- Slim, Lightweight, Low-Profile Design
- 5.2″ 1920 x 1080 Capacitive Touchscreen
- USB PD Power
- High 1500 cd/m² Brightness
- 4K HDMI Input, HDR/HLG/PQ Support
- AtomHDR Mode with 10-Stop Dynamic Range
- USB Calibration Support
- Single Sony L-Series Battery Slot
SPECIFICATIONS
| Physical | |
| Dimensions (W x H x D mm) | 151mm x 91.5mm x 20.8 mm (28.5mm with locking cable adaptor attached) |
| Weight | 210g |
| Mounting Points Bottom: | 1 x 1/4-inch 20 with anti-rotational points |
| Environmental | |
| Ambient Operating Temperature | Up to 40 degrees Celsius |
| Construction | |
| Body | ABS Polycarbonate Plastic |
| Cooling | Passive heat sink |
| Multi-Function Button | Power / Lock Screen |
| Touch Screen | Capacitive Touch |
| Power | |
| Input Voltage | 6.2V to 16.8V |
| Compatible Batteries | 1 x NP-F / L-Series |
| Built-In Battery | No |
| Continuous Power | Via NPF battery or USB-C PD |
| DC-In Connector | Via Battery Eliminator (separate purchase) |
| D-Tap | Via optionally available Battery Eliminator or D-Tap to DC-Barrel Cable (separate purchases) |
| Display | |
| Display Panel | SuperAtom IPS Panel (Capacitive Touch) |
| Size | 5.2-inch |
| Resolution | 1920 x 1080 |
| Viewing Angle | 178 + H & V |
| PPI | 427 |
| Bit Depth | 10-bit (8+2 FRC) |
| Backlight Type | Edge-lit |
| Brightness (cd/m² / nits) | 1500 |
| Aspect Ratio | 16:9 |
| Colour Gamut | Rec.709 |
| Calibration Support | No on-device calibration Atomos Calibrator on PC/Mac with Calibrite ColorChecker Display Pro & ColorChecker Display Plus |
|
Colour Pipeline |
|
| Gamma | Sony S-Log / S-Log2 / S-Log3, Canon C-Log / C-Log 2 / C-Log3, Panasonic V-LOG, JVC J-Log1, Fujifilm F-Log / F-Log2, Nikon N-LOG / HLG, Olympus OM-LOG400 / FLAT, OM-System OM-LOG400 / FLAT, Leica L-LOG |
| Gamut | BT2020, DCI P3, DCI P3 65, Sony SGamut / SGamut3 / SGamut3.cine, Canon Cinema / DCI P3 / DCI P3+ / BT.2020, Panasonic V Gamut, JVC LS300 |
| 3D LUT Display | .Cube format (17 & 33 points supported) |
| 3D LUT 50/50 Split | Yes |
| Monitoring Modes | SDR Native, HDR HLG, HDR PQ, 709 LUT, User LUT |
| Display Controls | Backlight, Lift, Gamma, Gain AtomHDR Built-in Technical Log to HDR EOTF |
| 3D LUTs | Load .Cube files from SD Card into 8 LUT Slots On-Device & use for Monitoring |
| Video Input | |
| HDMI | 1 x HDMI (1.4) |
| Bit Depth | 8 / 10-Bit |
| Chroma Subsampling | YCbCr 4:2:0 & 4:2:2 |
| Audio In/Out | |
| HDMI Embedded | 2-channel, 24-bit, input dependent |
| Headphone Out | 3.5mm headphone jack, 2-channel |
| Resolution and Frame Rates (Monitoring) | |
| 4K DCI | No 4K DCI Resolution Support |
| 4K UHD | 23.98/24/25/29.97/30 |
| FHD 1920 x 1080 Progressive | 23.98/24/25/29.97/30/50/59.94/60 |
| FHD 1920 x 1080 Interlaced | 50i/60i |
| 1280 x 720 Progressive | 50/59.94/60p |
| Supported Media | |
| SD Card | Update firmware & upload LUTs |
| File System | FAT32, NTFS |
| On-Screen Tools | |
| MultiScope Analysis View | Image, waveform, histogram, & vectorscope |
| Waveform | 3 sizes – adjustable opacity & brightness |
| Histogram | 3 sizes – adjustable opacity & brightness |
| RGB Parade | 3 sizes – adjustable opacity & brightness |
| Vectorscope | 1 size – adjustable opacity & brightness |
| 1x, 2x,4x Zoom | Tap to Zoom |
| Focus Peaking | 4 modes (colour, black & white, outline, edge sharpening) with adjustable outline colour & peaking intensity |
| Colourised Exposure | Atomos False Colour |
| Zebra | Adjustable threshold (50% to 105%) |
| Isolate Color Channel | Blue only |
| Cine Frame Guides | Presets for 2.41, 2.35, 1.91, 1.9, 1.85, 16:9 |
| Social Frame Guides | Presets for 9:16, 4:5, 2:3, 1:1, 5:4, 4:3, 3:2 |
| Safe Areas | SMPTE Safe Title Area – 93% & 90% |
| Grid Markers | 9 grid |
| Display Flip | Horizontal & Vertical |
|
External Device Control |
|
| Included | Shinobi GO, USB-C 2.0 cable, HDMI + USB-C locking cable adapter, Quick Start Guide |
| Optional Accessories | Quick Release Monitor Mount, NP-F Battery Eliminator, DC to DTap Cable, Power Kit, HDMI cables, USB-C to serial cable |
IN THE BOX
- Atomos Shinobi GO 5" Touchscreen HDR Video/Photo Monitor
- Atomos USB-C 2.0 cable
- Atomos HDMI and USB-C locking cable adapter
- Atomos Monitor Mount
