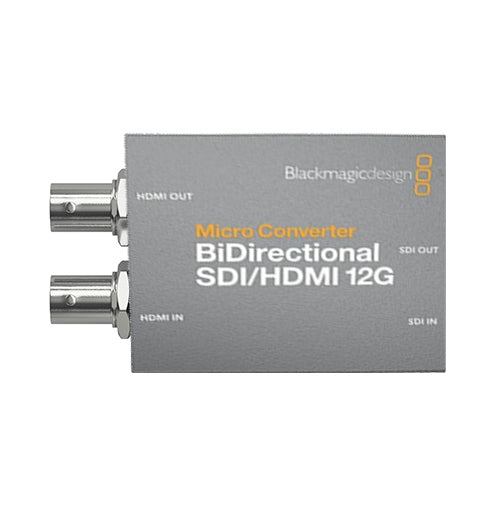

Blackmagic Design Micro Converter BiDirectional SDI/HDMI 12G

Easily combine SDI and HDMI components in your video setup with the Micro Converter BiDirectional SDI/HDMI 12G from Blackmagic Design. This compact bidirectional converter can convert SDI to HDMI and HDMI to SDI in all SD, HD, and UHD formats up to 2160p60. Since each conversion direction can be a different SD, HD, or UHD video standard, it's like getting two converters in one. It also offers camera control conversion for Blackmagic HDMI cameras like the Pocket Cinema Camera 4K or 6K, enabling you to use them with an SDI-based live switcher.

Original price R 4,250.00 - Original price R 4,250.00
Original price
R 4,250.00
R 4,250.00 - R 4,250.00
Current price R 4,250.00

The pocket-sized Micro Converter BiDirectional SDI/HDMI 12G features HDMI timecode support, SDI re-clocking for stability over long cable runs, support for a wide range of pro broadcast resolutions, including cine-style 48 fps, and both HDMI and SDI embedded audio input and output. This converter features a sturdy metal housing with power and signal LED status indicators and rugged connector interfaces. A USB Type-C port enables the converter to easily connect to and be powered by large-screen monitors, laptops, desktop computers, or projectors. A power supply and an international plug adapter set are included with the converter.

Features

Bidirectional Format Conversion

You can convert SDI to HDMI and HDMI to SDI in all SD, HD, and UHD formats up to 2160p60. Each conversion direction can be a different SD, HD, or UHD video standard, so it's like getting two converters in one.

Compact, Rugged Design

  • Robust metal housing and rugged connectors
  • USB Type-C port for powering via a compatible component like a monitor or laptop
  • Updatable via the USB Type-C port and your Mac or Windows computer

HDMI Camera Control

  • Camera control conversion for the HDMI-output Blackmagic Pocket Cinema Camera 4K or 6K, enables use with an SDI-based live switcher

SDI & HDMI Timecode

  • HD and SD timecode support
  • Converts HDMI timecode to SDI and vice versa

SDI Re-Clocking

  • Built-in re-clocking on 3G-SDI output enables stable output over longer cable runs
  • Compatible with SMPTE 259M/292M/296M/424M/425M level A and B

Wider Resolution Support

  • SDI support from NTSC and PAL up to DCI/UHD 4K60
  • HDMI support from NTSC and PAL up to DCI/UHD 4K60

Embedded Audio

  • Supports embedded SDI and HDMI input and output

LED Indicators

  • LED indicators for video and power signals

Versatile Power Options

  • Power from a monitor, laptop, or other component using the USB Type-C port
  • Power supply and international plug adapter set are included



  • Simultaneous SDI to HDMI & HDMI to SDI
  • 1 x SD/HD/12G-SDI & 1x HDMI Input/Output
  • Supports up to DCI/UHD 4K60 Video
  • Blackmagic Camera Control, Tally Support
  • SDI Re-Clocking/HDMI Timecode
  • HDMI Copy Protection Support
  • Automatic Input Signal Detection
  • Embedded HDMI & SDI Input/Output
  • LED Video & Power Signal Indicators
  • A Power Supply Is Included
Input
Video Input Connectors 1 x BNC (12G-SDI / 3G-SDI / HD-SDI / SD-SDI) Female
1 x HDMI (HDMI 2.0) Female
Input Video Format SDI (8/10-Bit 4:2:2 RGB, YUV)
DCI 4K at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
UHD 4K 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
DCI 2K 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
DCI 2KPsF 25/29.97/30 fps
1080p 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
1080PsF 25/29.97/30 fps
1080i 50/59.94/60 fps
720p 50/59.94/60 fps
NTSC 59.94 fps
PAL 50 fps
HDMI (8/10-Bit 4:2:2 RGB, YUV)
DCI 4K at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
UHD 4K 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
1080p 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
1080i 50/59.94/60 fps
720p 50/59.94/60 fps
NTSC 29.97 fps
PAL 25 fps
Audio Input Connectors None
Embedded Audio Input HDMI
SDI


Output
Video Output Connectors 1 x BNC (12G-SDI / 3G-SDI / HD-SDI / SD-SDI) Female
1 x HDMI (HDMI 2.0) Female
Output Video Format SDI (8/10-Bit 4:2:2 RGB, YUV)
DCI 4K at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
UHD 4K 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
DCI 2K 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
DCI 2KPsF 25/29.97/30 fps
1080p 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
1080PsF 25/29.97/30 fps
1080i 50/59.94/60 fps
720p 50/59.94/60 fps
NTSC 29.97 fps
PAL (768 x 576) 25 fps
Audio Output Connectors None
Embedded Audio Output HDMI
SDI


Standards
Video Standard Compliance SMPTE 259M/292M/296M/424M/425M-A/425M-B
HDCP Support Version 2.2
HDR Compatibility Not Specified by Manufacturer


Connectivity
Other I/O 1 x USB Type-C Firmware Input (Shared Power)
Expansion Slots None


Hardware
Tally Light Yes
OS Compatibility macOS 10.15.15 or Later
Windows 11.1 or Later
*As of November, 2021: check with manufacturer for the most up-to-date compatibility


Power
Power Connector 1 x USB Type-C (4.4 to 5.2 VDC) Input
Power Consumption Device: 5 W


Environmental
Operating Temperature 32 to 104°F / 0 to 40°C
Storage Temperature -4 to 140°F / -20 to 60°C
Operating Humidity 0 to 90%
General
Dimensions 3.18 x 2.32 x 0.98" / 80.77 x 58.93 x 24.89 mm
Weight 6.13 oz / 174 g
Packaging Info
Package Weight 0.875 lb
Box Dimensions (LxWxH) 5.8 x 4.7 x 2.9"

  • Blackmagic Design Micro Converter BiDirectional SDI/HDMI 12G with Power Supply
  • Power Adapter
