Type |
Single-lens reflex digital camera |
Lens mount |
Nikon F mount (with AF coupling and AF contacts) |
Effective angle of view |
Nikon DX format; focal length in 35 mm [135] format equivalent to approx. 1.5x that of lenses with FX format angle of view |
Image sensor |
DX, CMOS, 23.5 mm x 15.7 mm |
Total pixels |
21.51 million |
Dust-reduction system |
Image sensor cleaning, Image Dust Off reference data (Capture NX-D software required) |
Effective pixels |
20.9 million |
Image size (pixels) |
DX (24 x 16) image area, (L) 5568 x 3712 (20.6 million), (M) 4176 x 2784 (11.6 million), (S) 2784 x 1856 (5.1 million); 1.3x (18 x 12) image area, (L) 4272 x 2848 (12.1 million), (M) 3200 x 2136 (6.8 million), (S) 2128 x 1424 (3 million); Photographs with image area of DX taken during movie recording, (L) 5568 x 3128 (17.4 million), (M) 4176 x 2344 (9.7 million), (S) 2784 x 1560 (4.3 million); Photographs with image area of 1.3X taken during movie recording, (L) 4272 x 2400 (10.2 million), (M) 3200 x 1800 (5.7 million), (S) 2128 x 1192 (2.5 million); Photographs taken during movie recording at a frame size of 3840 x 2160: 3840 x 2160 (8.2 million)
|
Storage file formats |
NEF (RAW): 12 or 14 bit, lossless compressed or compressed, JPEG: JPEG-Baseline compliant with fine (approx. 1 : 4), normal (approx. 1 : 8), or basic (approx. 1 : 16) compression; optimal quality compression available, NEF (RAW) + JPEG: Single photograph recorded in both NEF (RAW) and JPEG formats |
Picture Control System |
Auto, Standard, Neutral, Vivid, Monochrome, Portrait, Landscape, Flat; selected Picture Control can be modified; storage for custom Picture Controls |
Storage media |
SD, SDHC (UHS-I compliant), SDXC (UHS-I compliant) |
File system |
DCF 2.0, Exif 2.31, PictBridge |
Viewfinder |
Eye-level pentaprism single-lens reflex viewfinder |
Frame coverage |
DX (24 x 16) image area: Approx. 100% horizontal and 100% vertical, 1.3x (18 x 12) image area: Approx. 97% horizontal and 97% vertical |
Magnification |
Approx. 0.94x (50 mm f/1.4 lens at infinity, –1.0 m-1) |
Eyepoint |
18.5 mm (–1.0 m-1; from center surface of viewfinder eyepiece lens) |
Diopter adjustment |
-2 to +1 m-1 |
Focusing screen |
Type B BriteView Clear Matte Mark II screen with AF area brackets (framing grid can be displayed) |
Reflex mirror |
Quick return |
Lens aperture |
Instant return, electronically controlled |
Compatible lenses |
Compatible with AF NIKKOR lenses, including type G, E, and D lenses (some restrictions apply to PC lenses) and AI-P NIKKOR lenses and non-CPU AI lenses (M mode only). IX NIKKOR lenses, lenses for the F3AF, and non-AI lenses can not be used. The electronic rangefinder can be used with lenses that have a maximum aperture of f/5.6 or faster (the electronic rangefinder supports the center 1 focus point with lenses that have a maximum aperture of f/8 or faster). |
Shutter type |
Electronically-controlled vertical-travel focal-plane mechanical shutter; electronic front-curtain shutter available in mirror up release mode |
Shutter speed |
1/8000 to 30 s, in steps of 1/3 or 1/2 EV, bulb, time, X250 |
Flash sync speed |
X = 1/250 s; synchronizes with shutter at 1/320 s or slower (flash range drops at speeds between 1/250 and 1/320 s) |
Release mode |
S (single frame), CL (continuous low speed), CH (continuous high speed), Q (quiet shutter-release), QC (quiet continuous shutter-release), Self-timer, MUP (mirror up) |
Frame advance rate |
Up to 8 fps; • CL: 1 to 7 fps; • CH: 8 fps; Note: Frame rates assume continuous-servo AF, manual or shutter-priority auto exposure, a shutter speed of 1/250 s or faster, Release selected for Custom Setting a1 (AF-C priority selection), and other settings at default values.
|
Self-timer |
2 s, 5 s, 10 s, 20 s; 1 to 9 exposures at intervals of 0.5, 1, 2, or 3 s |
Remote control modes |
Delayed remote, quick-response remote, remote mirror-up |
Exposure metering |
TTL exposure metering using RGB sensor with approximately 180K (180,000) pixels |
Metering method |
Matrix: 3D color matrix metering III (type G, E, and D lenses); color matrix metering III (other CPU lenses) Center-weighted: Weight of approximately 75% given to 8 mm circle in center of frame. Diameter of circle can be changed to 6, 10, or 13 mm, or weighting can be based on average of entire frame (non-CPU lenses use 8-mm circle) Spot: Meters circle with diameter of about 3.5 mm (about 2.5% of frame) centered on selected focus point (on center focus point when non-CPU lens is used) Highlight-weighted: Available with type G, E, and D lenses |
Metering range (ISO 100, f/1.4 lens, 20 °C/68 °F) |
Matrix, center-weighted, or highlight-weighted metering: 0 to 20 EV Spot metering: 2 to 20 EV |
Exposure meter coupling |
CPU |
Mode |
Auto modes (auto; auto, flash off); scene modes (portrait; landscape; child; sports; close up; night portrait; night landscape; party/indoor; beach/snow; sunset; dusk/dawn; pet portrait; candlelight; blossom; autumn colors; food); special effects modes (night vision; super vivid; pop; photo illustration; toy camera effect; miniature effect; selective color; silhouette; high key; low key); programmed auto with flexible program (P); shutter-priority auto (S); aperture-priority auto (A); manual (M); U1 (user settings 1); U2 (user settings 2) |
Exposure compensation |
Can be adjusted by –5 to +5 EV, in steps of 1/3 or 1/2 EV, in P, S, A, M, SCENE, and EFFECTS modes |
Exposure lock |
Luminosity locked at detected value |
ISO sensitivity |
ISO 100 to 51200, in steps of 1/3 or 1/2 EV. Can also be set to approx. 0.3, 0.5, 0.7, or 1 EV (ISO 50 equivalent) below ISO 100 or to approx. 0.3, 0.5, 0.7, 1, 2, 3, 4, or 5 EV (ISO 1640000 equivalent) above ISO 51200; auto ISO sensitivity control available |
Active D-Lighting |
Can be selected from Auto, Extra high, High, Normal, Low, or Off |
Autofocus |
Nikon Advanced Multi-CAM 3500 II autofocus sensor module with TTL phase detection, fine-tuning, 51 focus points (including 15 cross-type sensors; f/8 supported by 1 sensor), and AF-assist illuminator (range approx. 0.5 to 3 m/1 ft 8 in. to 9 ft 10 in.) |
Detection range |
–3 to +19 EV (ISO 100, 20 °C/68 °F) |
Lens servo |
Continuous-servo AF (AF-C), Auto AF-S/AF-C selection (AF-A), predictive focus tracking activated automatically according to subject status, Manual focus (M): Electronic rangefinder can be used |
Focus points |
51, Can be selected from 51 or 11 focus points |
AF-area mode |
Single-point AF; 9-, 21-, or 51-point dynamic-area AF, 3D-tracking, group-area AF, auto-area AF |
Focus lock |
Focus can be locked by pressing shutter-release button halfway (single-servo AF) or by pressing AE-L/AF-L button |
Built-in flash |
Auto, portrait, child, close up, night portrait, party/indoor, pet portrait, super vivid, pop, photo illustration, toy camera effect: Auto flash with auto pop-up P, S, A, M, food: Manual pop-up with button release |
Guide Number |
Approx. 12/39, 12/39 with manual flash (m/ft, ISO 100, 20 °C/68 °F) |
Flash control |
TTL: i-TTL flash control using RGB sensor with approximately 180K (180,000) pixels is available with built-in flash; i-TTL balanced fill-flash for digital SLR is used with matrix, center-weighted, and highlight-weighted metering, standard i-TTL fill-flash for digital SLR with spot metering |
Flash modes |
Auto, auto with red-eye reduction, auto slow sync, auto slow sync with red-eye reduction, fill-flash, red-eye reduction, slow sync, slow sync with red-eye reduction, rear-curtain with slow sync, rear-curtain sync, off; Auto FP High-Speed Sync supported |
Flash-ready indicator |
Lights when built-in flash or optional flash unit is fully charged; flashes after flash is fired at full output |
Accessory shoe |
ISO 518 hot-shoe with sync and data contacts and safety lock |
Nikon Creative Lighting System |
i-TTL flash control, radio-controlled Advanced Wireless Lighting, optical Advanced Wireless Lighting, modeling illumination, FV lock, Color Information Communication, Auto FP High-Speed Sync, AF-assist for multi-area AF |
Sync terminal |
AS-15 sync terminal adapter (available separately) |
White balance |
Auto (2 types), incandescent, fluorescent (7 types), direct sunlight, flash, cloudy, shade, preset manual (up to 6 values can be stored, spot white balance measurement available during live view), choose color temperature (2500 K to 10,000 K), all with fine-tuning |
Bracketing types |
Exposure, Flash, White balance, ADL |
Live View - Modes |
Photo live view, Movie live view |
Live view - lens servo |
Autofocus (AF): Single-servo AF (AF-S); full-time servo AF (AF-F) Manual focus (M) |
Live view - AF-area mode |
Face-priority AF, Wide-area AF, Normal-area AF, Subject-tracking AF |
Live view - autofocus |
Contrast-detect AF anywhere in frame (camera selects focus point automatically when face-priority AF or subject-tracking AF is selected) |
Movie - metering |
TTL exposure metering using main image sensor |
Movie - frame size (pixels) and frame rate |
3840 x 2160 (4K UHD): 30p (progressive), 25p, 24p; 1920 x 1080: 60p, 50p, 30p, 25p, 24p; 1280 x 720: 60p, 50p. Actual frame rates for 60p, 50p, 30p, 25p, and 24p are 59.94, 50, 29.97, 25, and 23.976 fps respectively; high quality available at all frame sizes, normal quality available at all sizes except 3840 x 2160 |
Movie - file format |
MOV, MP4 |
Movie - video compression |
H.264/MPEG-4 Advanced Video Coding |
Movie - audio recording format |
Linear PCM, AAC |
Movie - audio recording device |
Built-in stereo or external microphone; sensitivity adjustable |
Movie - ISO sensitivity |
Mode M: Auto ISO sensitivity control (ISO 100 to Hi 5) available with selectable upper limit; manual selection (ISO 100 to 51200 in steps of 1/3 or 1/2 EV) with additional options available equivalent to approximately 0.3, 0.5, 0.7, 1, 2, 3, 4, or 5 EV (ISO 1640000 equivalent) above ISO 51200 Modes P, S, and A: Auto ISO sensitivity control (ISO 100 to Hi 5) with selectable upper limit Night vision (EFFECT) mode: Auto ISO sensitivity control (ISO 100 to Hi 5) Other modes: Auto ISO sensitivity control (ISO 100 to 12800) |
Other options |
Index marking, time-lapse movies, electronic vibration reduction |

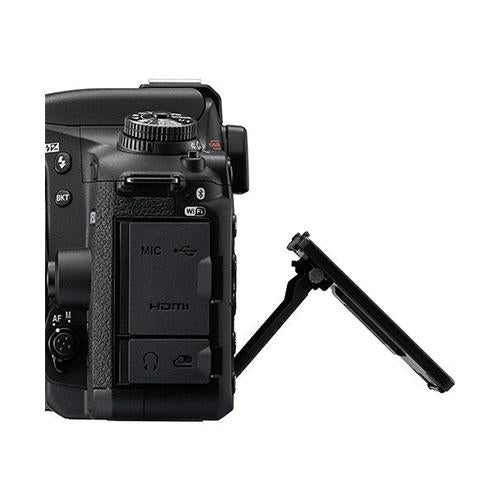

Monitor |
8 cm (3.2–in.) diagonal; tilting TFT touch-sensitive LCD with 170° viewing angle, approximately 100% frame coverage, manual monitor brightness control, and an eye-sensor controlling display on/off; Approx. 922k-dot, (VGA) |
Playback |
Full-frame and thumbnail (4, 9, or 72 images or calendar) playback with playback zoom, playback zoom cropping, movie playback, photo and/or movie slide shows, histogram display, highlights, photo information, location data display, picture rating, and auto image rotation |
USB |
Hi-Speed USB, with Micro-B connector; connection to built-in USB port is recommended |
HDMI output |
Type C HDMI connector |
Audio input |
Stereo mini-pin jack (3.5 mm diameter; plug-in power supported) |
Audio output |
Stereo mini-pin jack (3.5 mm diameter) |
Accessory terminal(s) |
Wireless remote controllers: WR-1, WR-R10 (available separately). Remote cord: MC-DC2 (available separately). GPS unit: GP-1/GP-1A (available separately) |
Wi-Fi (Wireless LAN) standards |
IEEE 802.11b, IEEE 802.11g. Maximum output power: 8.4 dBm (EIRP) |
Battery |
One EN-EL15a rechargeable Li-ion battery |
AC adapter |
EH-5c AC adapter; requires EP-5B power connector (available separately) |
Weight |
Approx. 720 g (1 lb 9.4 oz), with battery and memory card but without body cap; approx. 640 g (1 lb 6.6 oz; camera body only) |
Operating environment - temperature |
Temperature: 0 °C to 40 °C (+32 °F to 104 °F) |
|
|

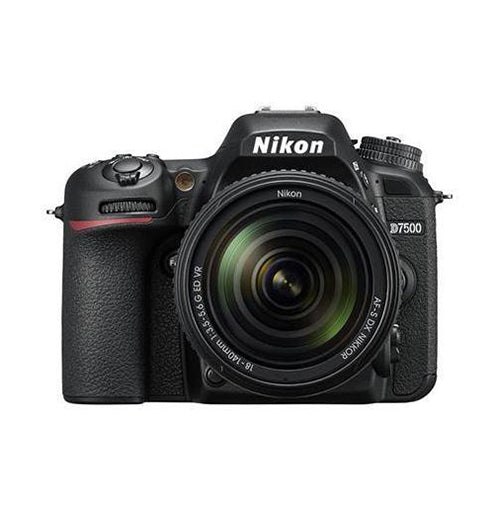

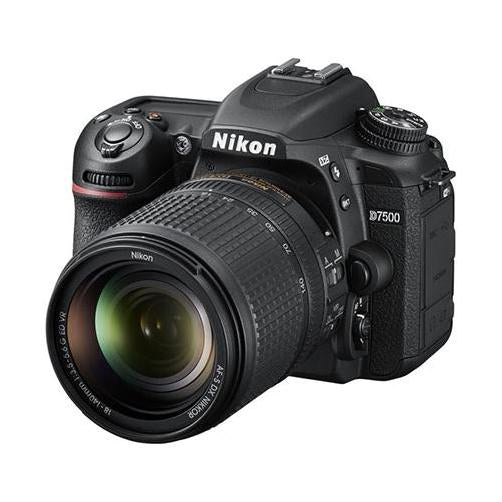

18-140mm VR Lens |
|
Focal Length |
18-140mm |
Maximum Aperture |
f/3.5-5.6 |
Minimum Aperture
|
f/22-38 |
Barrel Type |
Magnesium alloy barrel |
Camera Mount |
Nikon F-mount |
Minimum Focus Distance |
45 cm |
Internal Focus
|
Yes |
Internal Zoom
|
No |
Image Stabilisation
|
Yes |
Filter Thread
|
67 mm |
Weight |
490 g |
|
|
