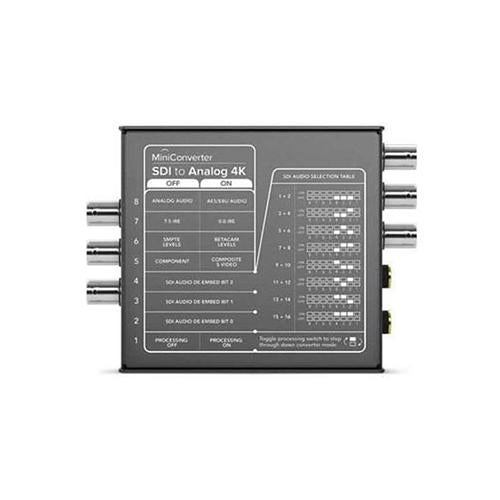

Blackmagic SDI to Analog 4K Mini Converter
Blackmagic SDI to Analog 4K Mini Converter
Blackmagic SDI to Analog 4K Mini Converter
Blackmagic SDI to Analog 4K Mini Converter
Blackmagic SDI to Analog 4K Mini Converter
Blackmagic SDI to Analog 4K Mini Converter

Blackmagic SDI to Analog 4K Mini Converter

Regular price R 6,595.00 Save R -6,595.00
/
Tax included.

Only 1 items in stock!

Please Check Stock Availability

Product Highlights

  • Single Link SD/HD/3G/6G-SDI Input
  • Component, Composite, & S-Video Output
  • SD, HD, UHD 4K & DCI 4K Input Signals
  • Automatic Input Signal Detection
  • Redundant SDI Input & Looped SDI Output
  • Analog & AES-EBU Digital Audio Outputs
  • 24-bit, 48 kHz Audio
  • USB 2.0 Port for Firmware Updates

GET IT WITH MOBICRED

Want it now?  Buy it with Mobicred!  A simple, safe credit facility that allows you to shop online and pay it off in monthly instalments.




Apply Now



How does it work?

    • Apply once-off online
    • Accept T&C’s and get your credit limit
    • You’re ready to shop till you drop online
    • Pay one single monthly instalment
    What do I need to apply?
      • You must be 18 and older.
      • You must have a valid SA ID or Drivers Licence.
      • You must be employed.
      • Provide your latest 3 months’ payslips or bank statements at time of application.
      • Earn a minimum of R5500 a month.
      How do I apply?
        • Complete the online application form
        • Wait for your application to be processed
        • You can now shop till you drop.

        Stock is going in and out all the time, so to be 100% sure that we have an item available, please phone (031) 261-6961 or email sales@dtfilmservices.com.

        Otherwise you can wait for us to contact you after you have placed your order

        Should you require anything else that is not on our Website, please email or phone on sales@dtfilmservices.com, +27 31 261-6961 as this website is mainly for catalogue purposes and an indication of what we sell.

        Overview

        The Mini Converter SDI to Analog 4K from Blackmagic Design allows you to convert Single Link SD/HD/3G/6G-SDI to analog SD/HD component, composite, or S-Video. The down-converter lets you to connect professional SDI equipment which outputs resolutions up to Ultra HD 4K (3840 x 2160) and DCI 4K (4096 x 2160) with SD and HD analog video monitors and other equipment. With a compact form factor and easy-to-use controls, the Mini Converter is ideal for a variety of broadcast, post production, and professional AV applications.

        Using 6G-SDI technology, the Mini Converter supports resolutions up to UHD 4K at up to 30 fps and DCI 4K at 24 fps. The Mini Converter also supports Single Link SD, HD, and 3G-SDI signals and automatically detects the input video format and instantly changes. A redundant SDI input is provided as an optional back up, and an SDI loop-through output is available for sending the SDI signal to an additional device. Up to 16 channels of de-embedded SDI input audio can be outputted as AES/EBU digital audio or balanced analog audio output via 1/4" output jacks.

        The Mini Converter's settings are controlled using the built-in DIP switches or via USB using the included software for Max OS X or Windows computers. The USB port also enables the firmware to be updated. For powering the device, a 12V power supply is included with international socket adapters.

        Additional Features
        • 4:2:2 Sampling and color precision
        • 24-bit, 48 kHz audio sampling
        • Compliant with SMPTE 292M, SMPTE 259M, SMPTE 296M, ITU-R BT.656, and ITU-R BT.601 standards

        Specifications

        Video Input

        1 x 6G-SDI
        1 x 6G-SDI redundant input
        Video Output 3 x BNC connectors
        Analog SD/HD component, NTSC/PAL composite, and S-Video
        Multi-Rate Support Auto detection of SD, HD, or 6G SDI signals
        Reclocking Yes
        Audio Input Embedded audio from SDI input
        Audio Output 2 x 1/4" jack, 2 channels of analog or AES/EBU digital audio
        Format Support SD:
        NTSC 525/29.97 and 525/23.98
        PAL 625/25

        HD:
        720p 59.94/60
        1080i 50/59.94/60
        1080PsF 23.98/24/25/29.97/30
        1080p 23.98/24/25/29.97/30/50/59.94/60

        2K:
        2048x1080PsF 23.98/24/25
        2048/1080p 23.98/24/25

        UHD/4K
        3840x2160p 23.98/24/25/29.97/30
        4096x2160p 24
        SDI Compliance SMPTE 292M, SMPTE 259M, SMPTE 296M, ITU-R BT.656, and ITU-R BT.601
        SDI Video Rates Switchable between SD, HD, 3G, and 6G SDI
        SDI Video Sampling 4:2:2
        SDI Audio Sampling 24-bit, 48 kHz
        SDI Color Precision 4:2:2
        SDI Color Space YUV
        SDI Auto Switching Automatically detects SD, HD, 3G, or 6G-SDI
        Analog Format Support SD:
        NTSC 525/23.98 and 525/29.97
        PAL 625/25

        HD:
        720p 50/59.94/60
        1080i 50/59.94/60
        1080p 23.98/24/25/29.97/30
        Analog Color Precision 4:2:2
         HDMI Color Space YUV
        Format Conversion HD down conversion
        Settings Control DIP switches or USB software for Mac PS X and Windows
        Firmware Upgradeable Via USB 2.0
        Power Supply 12 VDC
        Power Consumption 8.04 W
        Operational Voltage Range 12 VDC
        Operating Temperature 32 to 104° F (0 to 40 ° C)
        Storage Temperature -4 to 113° F (-20 to 45 ° C)
        Relative Humidity 0 to 90% non-condensing
        Dimensions 4.84 x 3.63 x 0.90" (12.29 x 9.22 x 2.29 cm)
        Weight 10.68 oz (302.77 g)
        PACKAGING INFO
        Package Weight 1.3 lb
        Box Dimensions (LxWxH) 5.6 x 5.4 x 2.6"
